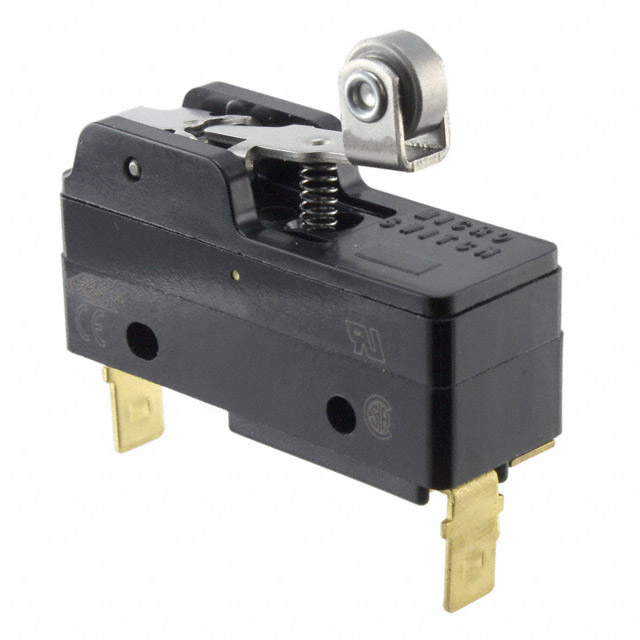

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15A 125/250VAC, ENEC 16A 250VAC, 26,7mm [1.05in] Sintered Roller Lever Actuator, Flat-Base Case with 90° Quick Connect Termination, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC
**BZ Series Switches**
The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.
欧时:
Switch SPDT 15A Roller lever
艾睿:
This BZ-2RW822-D5 snap-action switch from Honeywell can be actuated with very little physical force. It has a SPDT configuration. This device has a maximum current rating of 16 A @ 250VAC. This snap action switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The BZ-2RW822-D5 snap action switch has a quick connect termination style. The maximum AC voltage rating is 600 VAC and the maximum DC voltage rating is 250 VDC. This product is 49.28 mm long, 48.92 mm tall and 17.45 mm deep.
Allied Electronics:
SWITCH ROLLER SPDT 15A QC 125V
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect 16A 600VAC 250VDC 186.42VA 1.67N Screw Mount Automotive
Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever 16A 600VAC 250VDC 186.42VA 1.67N Screw Mount Quick Connect Automotive
MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A 250 Vac, 26,7 mm [1.050 in] Sintered Roller Lever Actuator, Flat-Base Case with 90° Quick Connect Termination, Mounting Holes will Accept P
Online Components:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...
Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...
