BT1.5I-C0

BT1.5I-C0图片1
BT1.5I-C0图片2
BT1.5I-C0图片3
BT1.5I-C0图片4
BT1.5I-C0图片5
BT1.5I-C0图片6
BT1.5I-C0图片7
BT1.5I-C0图片8
BT1.5I-C0概述

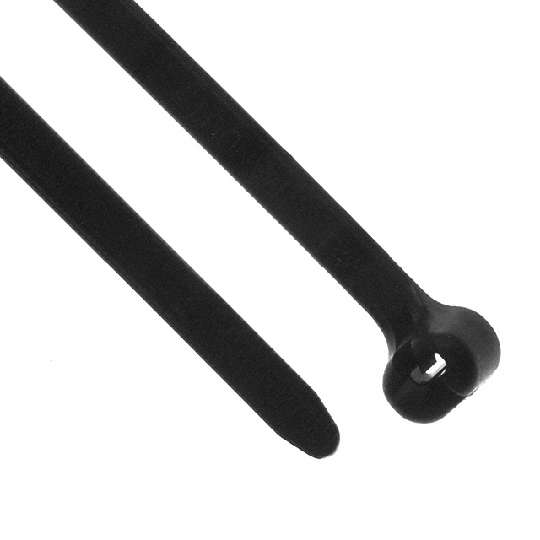

Panduit 黑色 尼龙 66 锁定电缆扎带 电缆扎带, 155mm x 3.6 mm

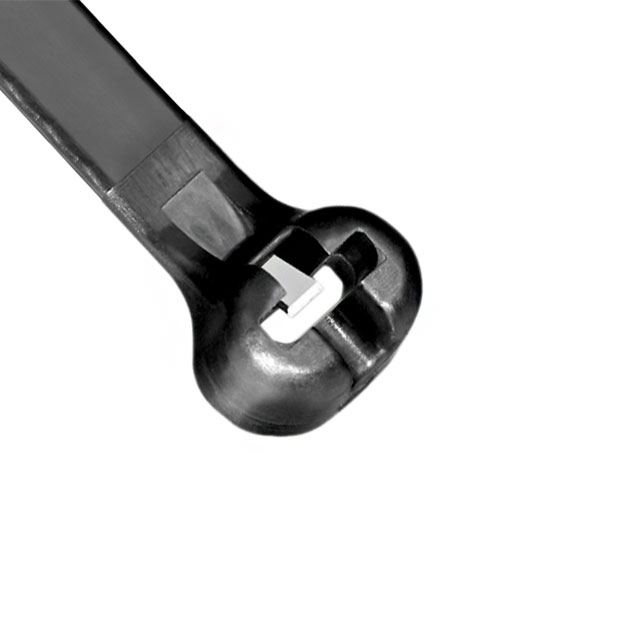

The is a Dome-Top® Barb Ty Cable Tie made of weather resistant nylon 6.6. The Dome-top head features unique patented design with round and smooth edges. The stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation.

.
High strength and low thread force
.
Intermediate cross section
.
Locking style
.
178N Loop tensile strength minimum
.
GTS-E, GS2B, PTS, PPTS and STS2 Application tools
BT1.5I-C0中文资料参数规格
技术参数

工作温度Max 85 ℃

工作温度Min -60 ℃

外形尺寸

长度 155 mm

宽度 3.6 mm

高度 0.185 in

物理参数

颜色 Black

材质 Nylon

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买BT1.5I-C0
型号: BT1.5I-C0
制造商: Panduit 泛达
描述:Panduit 黑色 尼龙 66 锁定电缆扎带 电缆扎带, 155mm x 3.6 mm
