BGA2869 系列 31.7 dB 950 MHz 50 Ohm 24 mA 5 V MMIC 宽带 放大器
Overview

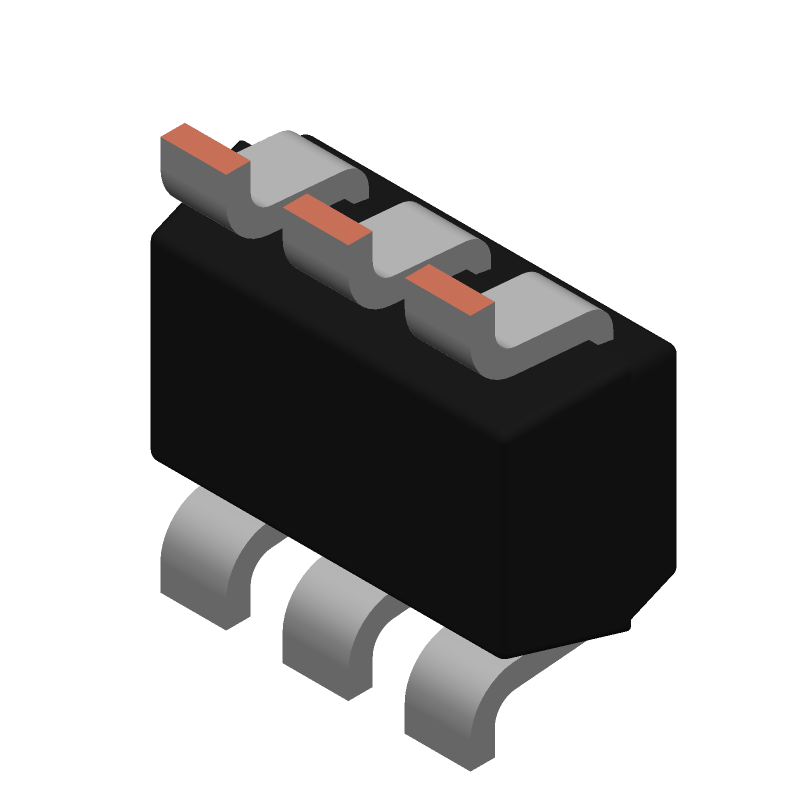

Silicon Monolithic Microwave Integrated Circuit MMIC wideband amplifier with internal matching circuit in a 6-pin SOT363 plastic SMD package.
MoreLess
## Features
* Internally matched to 50 Ω
* A gain of 31.7 dB at 950 MHz
* Output power at 1 dB gain compression = 10 dBm at 950 MHz
* Supply current = 24.0 mA at a supply voltage of 5.0 V
* Reverse isolation > 39 dB up to 2150 MHz
* Good linearity with low second order and third order products
* Noise figure = 3.1 dB at 950 MHz
* Unconditionally stable K > 1
* No output inductor required
## Target Applications
* LNB IF amplifiers
* General purpose low noise wideband amplifier for frequencies between DC and 2.2 GHz
## Features
频率 0Hz ~ 2.2GHz
供电电流 24 mA
通道数 1
针脚数 6
耗散功率 0.2 W
输出功率 10 dBm
增益 32.2 dB
测试频率 2.15 GHz
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 3000 MHz
耗散功率Max 200 mW
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 6
封装 SOT-363-6
高度 1 mm
封装 SOT-363-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
