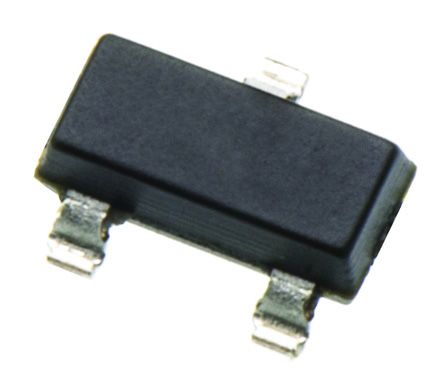

BAV70 系列 80 V 200 mA 表面贴装 硅 开关二极管 - SOT-23-3
小信号开关,
Infineon 高速小信号开关二极管,电流额定值高达 1A,反向电压额定值高达 400V。 多数这些设备提供双路、三路和四路配置。
欧时:
Dual CC Switching Diode 85V 200mA SOT23
得捷:
DIODE ARRAY GP 80V 200MA SOT23
贸泽:
Diodes - General Purpose, Power, Switching Silicon Switch Diode 200mA
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode BAV70E6433HTMA1 rectifier from Infineon Technologies. Its maximum power dissipation is 250 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a dual common cathode configuration. Its peak non-repetitive surge current is 4.5 A, while its maximum continuous forward current is 0.2 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
安富利:
Diode Switching 85V 0.2A 3-Pin SOT23 T/R
Chip1Stop:
Diode Switching Si 85V 0.2A Automotive 3-Pin SOT-23 T/R
Verical:
Rectifier Diode Switching Si 85V 0.2A 4ns Automotive 3-Pin SOT-23 T/R
Win Source:
DIODE ARRAY GP 80V 200MA SOT23
额定电压DC 80.0 V
额定电流 200 mA
输出电流 ≤200 mA
正向电压 1250 mV
耗散功率 250 mW
反向恢复时间 4 ns
正向电流 200 mA
正向电压Max 1.25V @150mA
正向电流Max 200 mA
工作温度Max 150 ℃
工作温度Min 65 ℃
工作结温 150℃ Max
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.9 mm
封装 SOT-23-3
材质 Silicon
工作温度 -65℃ ~ 150℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAV70E6433HTMA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
BAV70E6327HTSA1 英飞凌 | 类似代替 | BAV70E6433HTMA1和BAV70E6327HTSA1的区别 |
BAV 70 B5003 英飞凌 | 功能相似 | BAV70E6433HTMA1和BAV 70 B5003的区别 |
