INFINEON BCR420UE6327HTSA1 发光二极管驱动器, 1输出, 恒流, 1.4V-40V输入, 10kHz开关, 38V/150mA输出, SC-74-6
显示驱动器，
欧时:
Infineon 恒流 LED 驱动器 BCR420UE6327HTSA1, 40 V 直流输入, 最大为 38 V输出, 200mA输出, SC74-6
得捷:
IC LED DRVR LIN PWM 200MA SC74-6
立创商城:
线性恒流驱动
贸泽:
LED照明驱动器 LED DRIVER
e络盟:
发光二极管驱动器, 1输出, 恒流, 1.4V-40V输入, 10kHz开关, 38V/150mA输出, SC-74-6
艾睿:
LED DRVR Automotive 6-Pin SC-74 T/R
安富利:
LED DRVR 6-Pin SC-74 T/R
Chip1Stop:
LED DRVR Automotive 6-Pin SC-74 T/R
Verical:
LED DRVR Automotive 6-Pin SC-74 T/R
Newark:
LED Driver, Linear, 1.4V to 40V input, 3 Outputs, 10 kHz switch-freq., 2V/150 mA out, SC-74-6
Win Source:
IC LED DRVR LIN DIM 200MA SC74-6
输出接口数 1
输出电压 38 V
输出电流 150 mA
针脚数 6
耗散功率 1000 W
开关频率 10 kHz
输入电压Max 40 V
输入电压Min 1.4 V
输出电压Max 38 V
工作温度Max 150 ℃
工作温度Min 0 ℃
耗散功率Max 1000 mW
电源电压 4.5V ~ 40V
电源电压Max 40 V
输入电压 40 VDC
安装方式 Surface Mount
引脚数 6

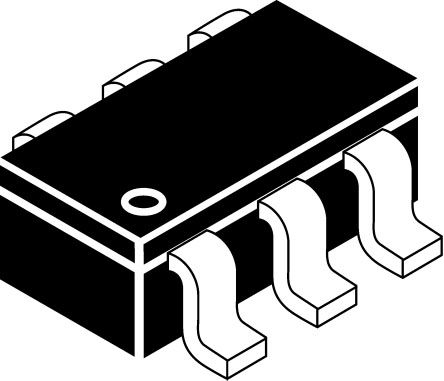

封装 SOT-26-6
长度 2.9 mm
宽度 1.6 mm
高度 1.1 mm
封装 SOT-26-6
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, Lighting, Automotive interior and exterior LED lighting, 照明, 发光二极管照明, LED Lighting, Lighting, LED Lighting, Automotive, Lighting, LED Lighting, Automoti
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
