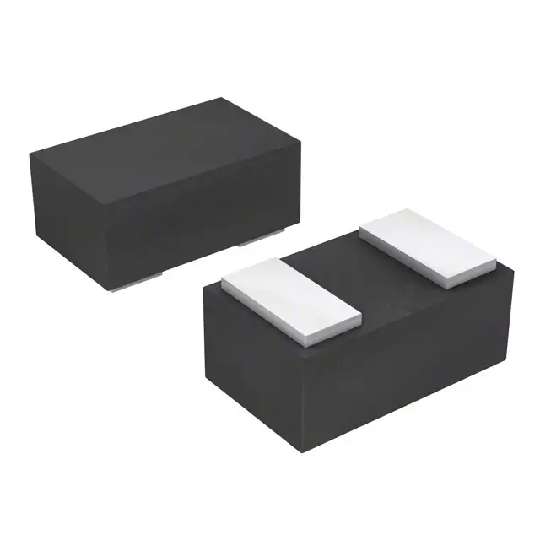

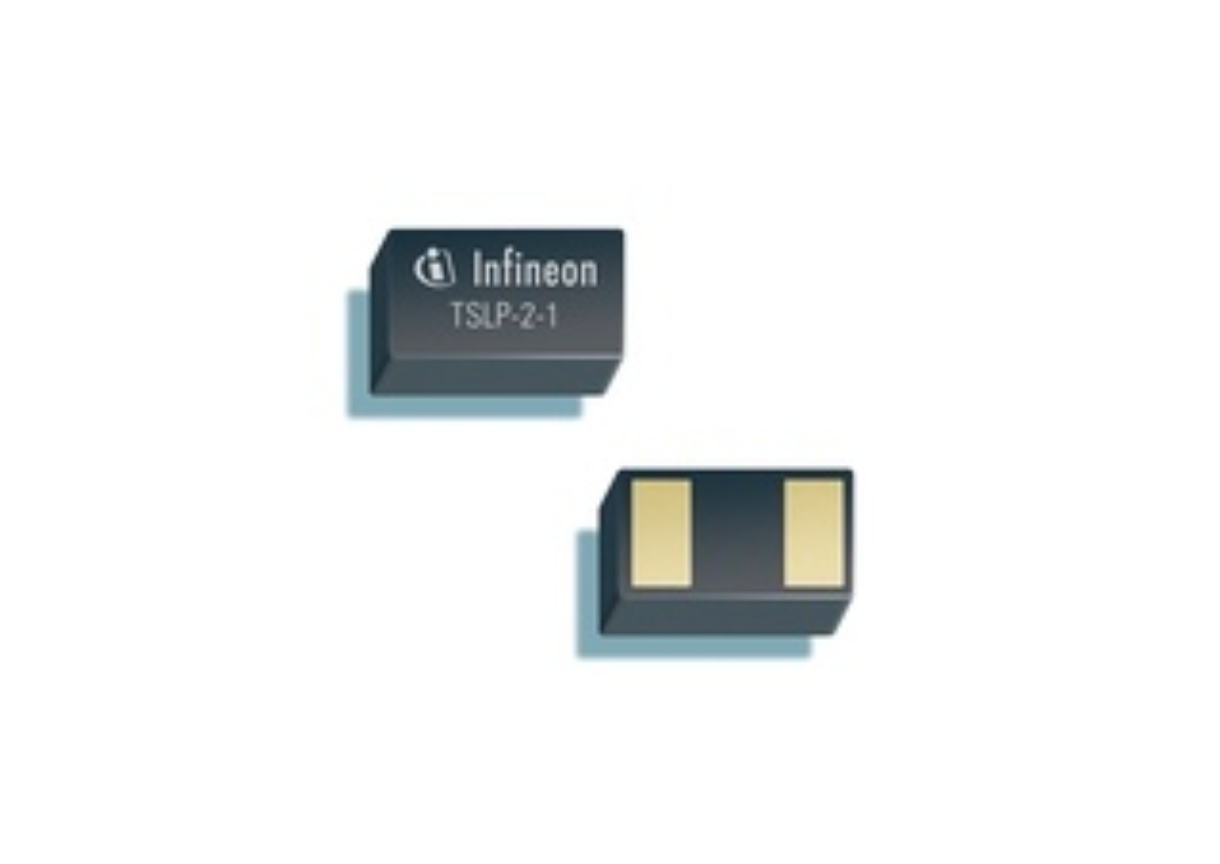

Infineon 二极管 BAS1602LE6327XTMA1 开关, Io=250mA, Vrev=85V, 4ns, 2引脚 TSLP封装
小信号开关，
Infineon 高速小信号开关二极管，电流额定值高达 1A，反向电压额定值高达 400V。 多数这些设备提供双路、三路和四路配置。
得捷:
DIODE GP 80V 200MA TSLP-2-1
欧时:
Infineon 二极管 BAS1602LE6327XTMA1 开关, Io=250mA, Vrev=85V, 4ns, 2引脚 TSLP封装
贸泽:
Diodes - General Purpose, Power, Switching Silicon Switching Diode
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode BAS1602LE6327XTMA1 rectifier from Infineon Technologies. Its maximum power dissipation is 250 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its peak non-repetitive surge current is 4.5 A, while its maximum continuous forward current is 0.2 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
Chip1Stop:
Diode Switching 85V 0.2A Automotive 2-Pin TSLP T/R
Verical:
Diode Switching 85V 0.2A Automotive 2-Pin TSLP T/R
Win Source:
DIODE GEN PURP 80V 200MA TSLP-2 / Diode Standard 80 V 200mA DC Surface Mount PG-TSLP-2-1
额定电压DC 80.0 V
额定电流 200 mA
输出电流 ≤200 mA
正向电压 1.25V @150mA
耗散功率 250 mW
反向恢复时间 4 ns
正向电流 200 mA
最大正向浪涌电流（Ifsm） 4.5 A
正向电压Max 1.25 V
正向电流Max 250 mA
工作温度Max 150 ℃
工作温度Min 65 ℃
工作结温 150℃ Max
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 2
封装 PG-TSLP-2
长度 1 mm
宽度 0.6 mm
高度 0.35 mm
封装 PG-TSLP-2
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
