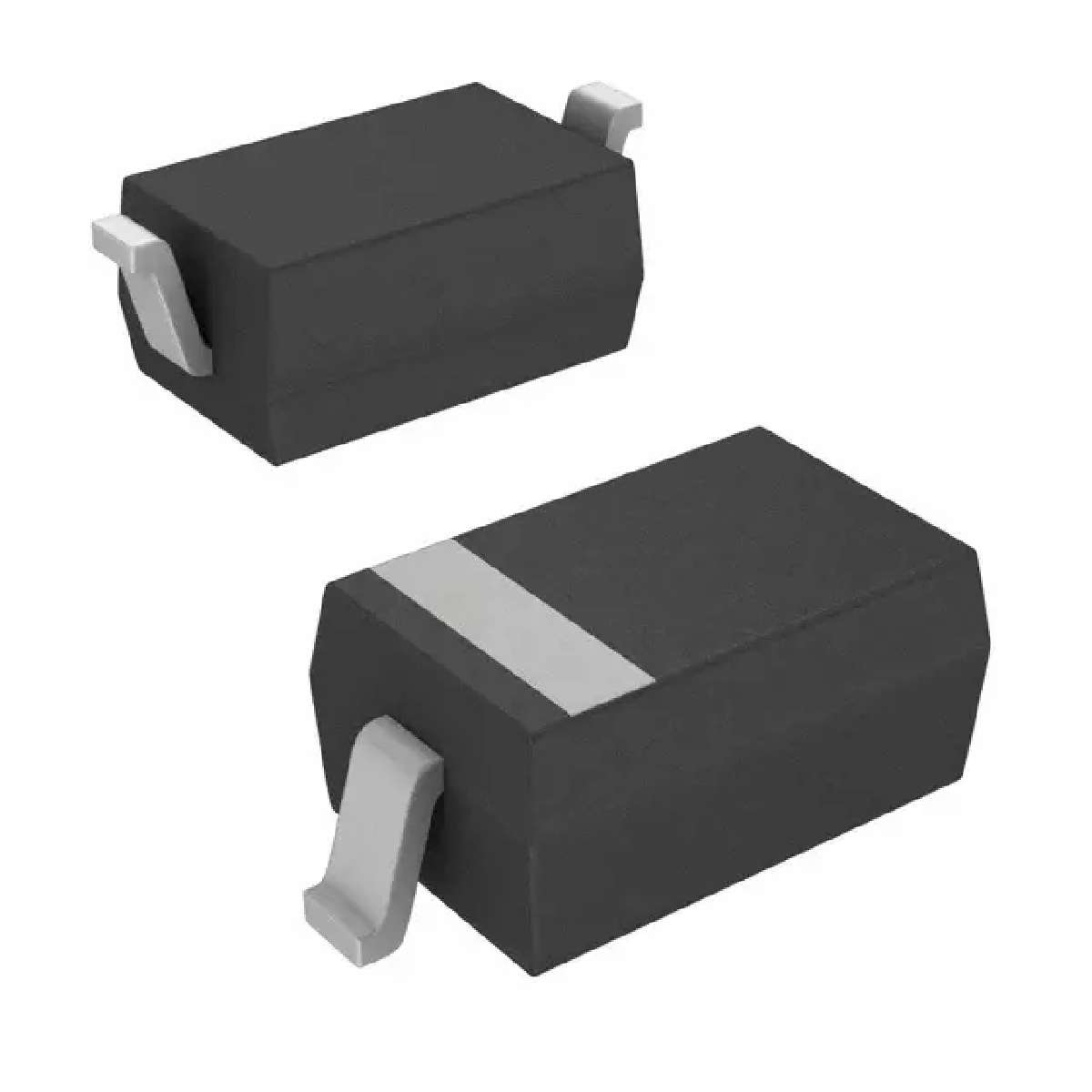

SOD-123 18V 0.5W1/2W
Zener Diode 18V 200mW ±6% Surface Mount SOD-123
立创商城:
18V 500mW
得捷:
DIODE ZENER 18V 200MW SOD123
艾睿:
This BZT52C18-TP zener diode from Micro Commercial Components will allow you to run it in the reverse direction. Its test current is 5 mA. Its maximum power dissipation is 500 mW. Its maximum leakage current is 0.1 μA. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This zener diode has an operating temperature range of -65 °C to 175 °C. It is made in a single configuration. This zener device has a nominal voltage of 18 V and a voltage tolerance of 6%.
额定电压DC 18.0 V
容差 ±6 %
额定功率 500 mW
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 5 mA
稳压值 18 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-123
长度 2.85 mm
宽度 1.8 mm
高度 1.2 mm
封装 SOD-123
工作温度 -65℃ ~ 150℃
温度系数 14.2 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C18-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZT52C18-7-F 美台 | 完全替代 | BZT52C18-TP和BZT52C18-7-F的区别 |
BZV55C18-TP 美微科 | 功能相似 | BZT52C18-TP和BZV55C18-TP的区别 |
BZT52C18Q-7-F 美台 | 功能相似 | BZT52C18-TP和BZT52C18Q-7-F的区别 |
