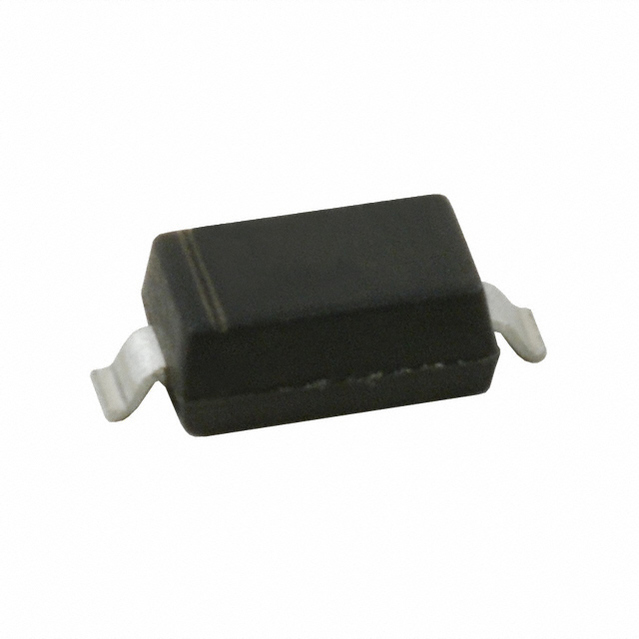

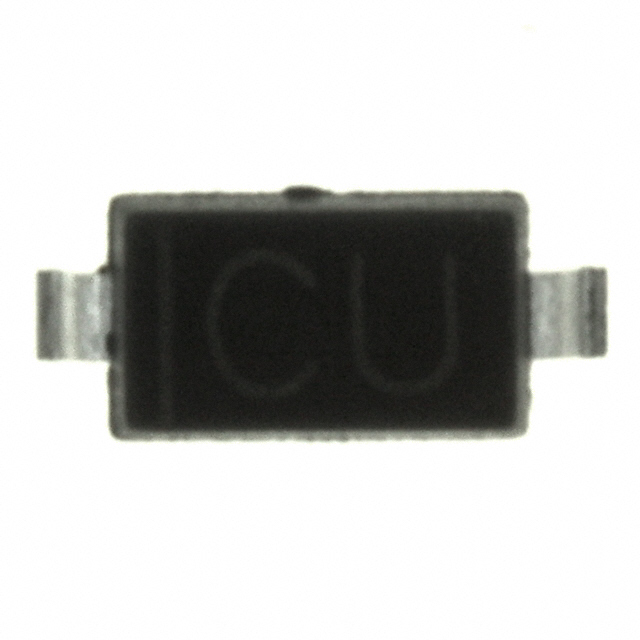

BZT52C4V7-TP 编带
Zener Diode 4.7V 200mW ±6% Surface Mount SOD-123
得捷:
DIODE ZENER 4.7V 200MW SOD123
立创商城:
4.7V 500mW
贸泽:
Zener Diodes 500mW 4.7V
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this BZT52C4V7-TP zener diode from Micro Commercial Components is exactly what you need. Its maximum leakage current is 3 μA. Its maximum power dissipation is 500 mW. Its test current is 5 mA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. This zener device has a nominal voltage of 4.7 V and a voltage tolerance of 6%.
额定电压DC 4.70 V
容差 ±6 %
额定功率 500 mW
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 5 mA
稳压值 4.7 V
正向电压Max 0.9 V
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.85 mm
宽度 1.8 mm
高度 1.2 mm
封装 SOD-123-2
工作温度 -65℃ ~ 150℃
温度系数 -1.65 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C4V7-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZT52C4V7-7-F 美台 | 功能相似 | BZT52C4V7-TP和BZT52C4V7-7-F的区别 |
BZT52C4V7-13-F 美台 | 功能相似 | BZT52C4V7-TP和BZT52C4V7-13-F的区别 |
BZV55C4V7-TP 美微科 | 功能相似 | BZT52C4V7-TP和BZV55C4V7-TP的区别 |
