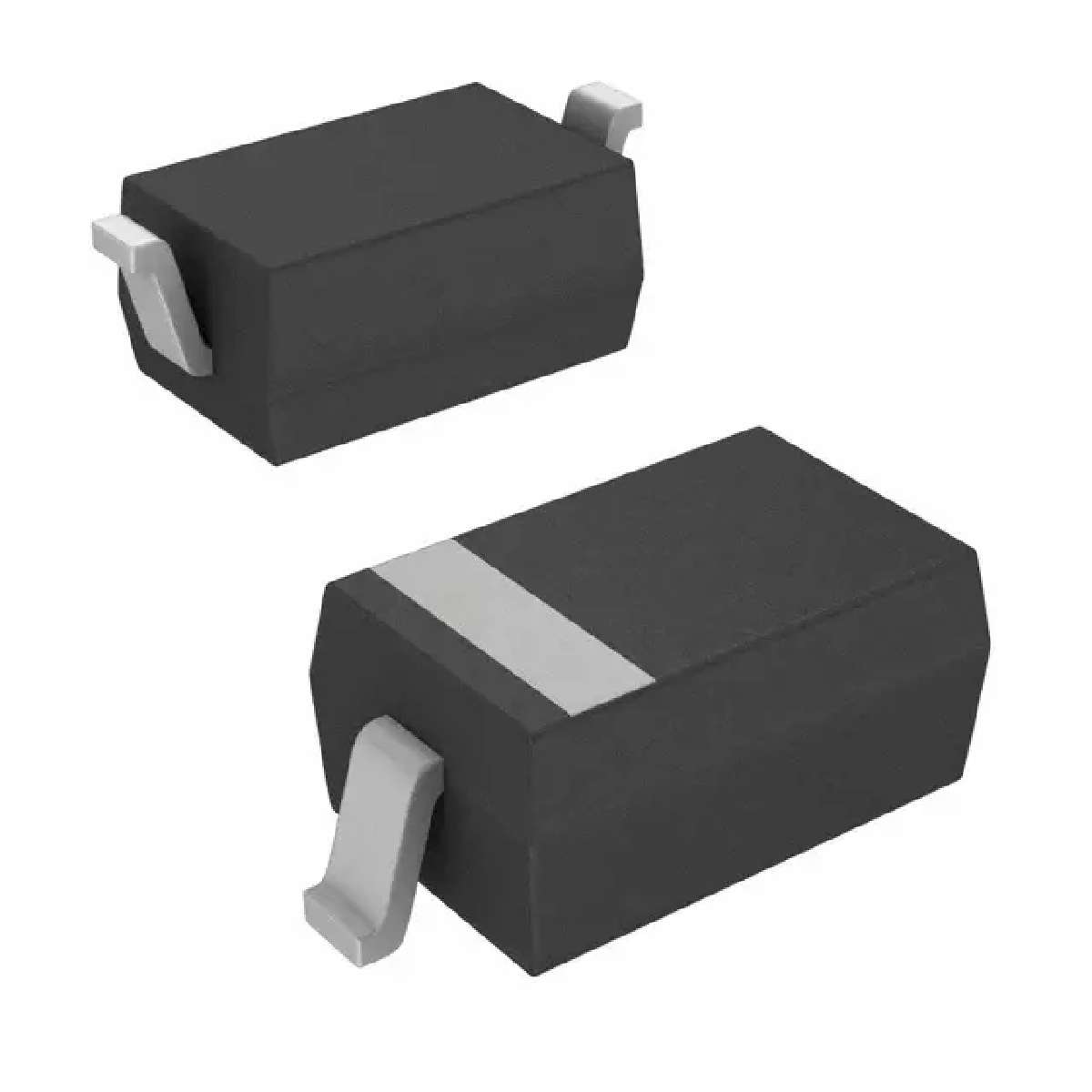

SOD-123 7.5V 0.5W1/2W
Zener Diode 7.5V 200mW ±6% Surface Mount SOD-123
得捷:
DIODE ZENER 7.5V 200MW SOD123
立创商城:
7.5V 500mW
艾睿:
This BZT52C7V5-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum power dissipation is 500 mW. Its maximum leakage current is 1 μA. Its test current is 5 mA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. This zener device has a nominal voltage of 7.5 V and a voltage tolerance of 6%. This zener diode has an operating temperature range of -65 °C to 175 °C.
额定电压DC 7.50 V
容差 ±6 %
额定功率 500 mW
正向电压 900 mV
耗散功率 500 mW
测试电流 5 mA
稳压值 7.5 V
正向电压Max 0.9 V
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-123
长度 2.85 mm
宽度 1.8 mm
高度 1.2 mm
封装 SOD-123
工作温度 -65℃ ~ 150℃
温度系数 3.9 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C7V5-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMSZ5236BT1G 安森美 | 功能相似 | BZT52C7V5-TP和MMSZ5236BT1G的区别 |
MMSZ5226BT1G 安森美 | 功能相似 | BZT52C7V5-TP和MMSZ5226BT1G的区别 |
MMSZ4693T1G 安森美 | 功能相似 | BZT52C7V5-TP和MMSZ4693T1G的区别 |
