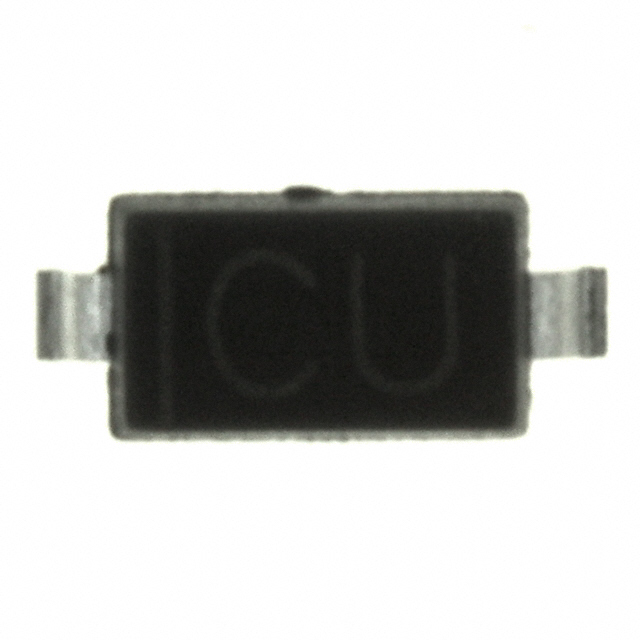

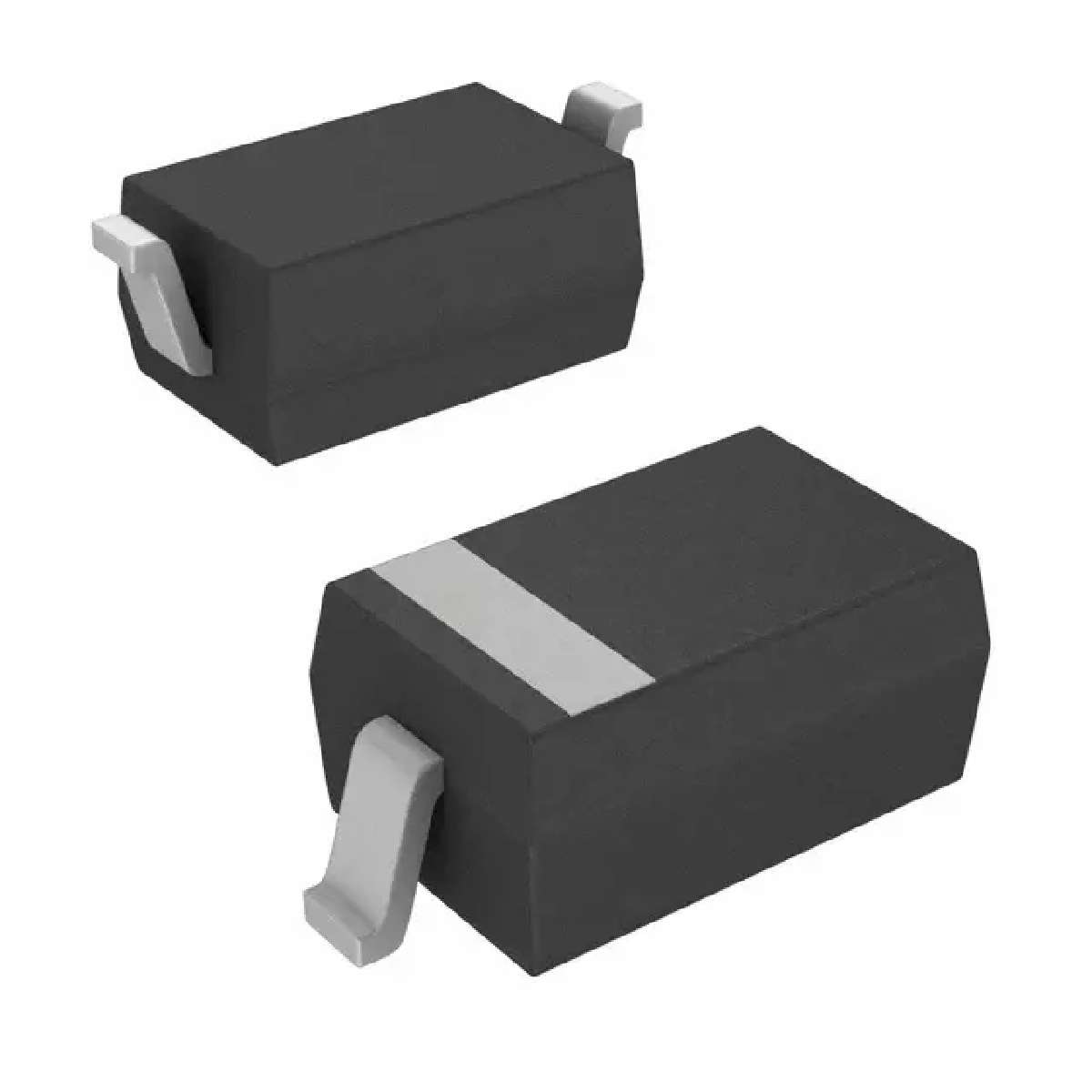

SOD-123 30V 0.5W1/2W
Zener Diode 30V 200mW ±7% Surface Mount SOD-123
得捷:
DIODE ZENER 30V 200MW SOD123
立创商城:
30V 500mW
艾睿:
This BZT52C30-TP zener diode from Micro Commercial Components is perfect for blocking a voltage. Its maximum power dissipation is 500 mW. Its test current is 2 mA. Its maximum leakage current is 0.1 μA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. This zener device has a nominal voltage of 30 V and a voltage tolerance of 7%. It is made in a single configuration.
Chip1Stop:
Diode Zener Single 30V 7% 500mW 2-Pin SOD-123 T/R
Verical:
Zener Diode Single 30V 7% 80Ohm 500mW 2-Pin SOD-123 T/R
额定电压DC 30.0 V
容差 ±7 %
额定功率 500 mW
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 2 mA
稳压值 30 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 175 ℃
工作温度Min -65 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123
长度 2.85 mm
宽度 1.8 mm
高度 1.2 mm
封装 SOD-123
工作温度 -65℃ ~ 150℃
温度系数 26.9 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C30-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZT52C30 台湾半导体 | 类似代替 | BZT52C30-TP和BZT52C30的区别 |
BZT52C30-7-F 美台 | 功能相似 | BZT52C30-TP和BZT52C30-7-F的区别 |
BZV55C30-TP 美微科 | 功能相似 | BZT52C30-TP和BZV55C30-TP的区别 |
