稳压二极管 500mW 2.7V

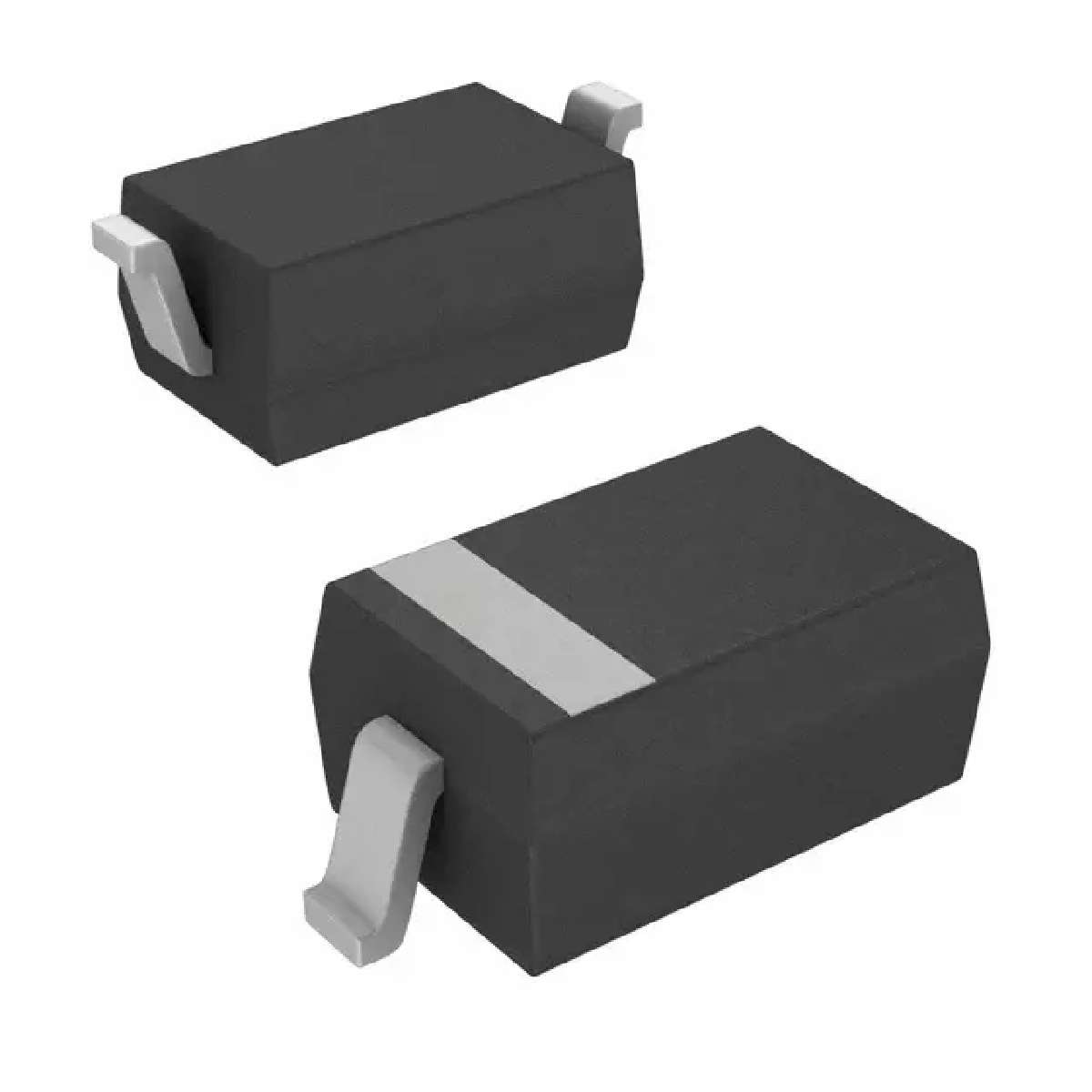

Zener Diode 2.7V 200mW ±7% Surface Mount SOD-123
得捷:
DIODE ZENER 2.7V 200MW SOD123
贸泽:
稳压二极管 500mW 2.7V
艾睿:
This BZT52C2V7-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its test current is 5 mA. Its maximum power dissipation is 500 mW. Its maximum leakage current is 20 μA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 175 °C. This zener device has a nominal voltage of 2.7 V and a voltage tolerance of 7%.
额定电压DC 2.70 V
容差 ±7 %
额定功率 500 mW
正向电压 900 mV
耗散功率 500 mW
测试电流 5 mA
稳压值 2.7 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-123
长度 2.85 mm
宽度 1.8 mm
高度 1.2 mm
封装 SOD-123
工作温度 -65℃ ~ 150℃
温度系数 -1.75 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C2V7-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMSZ4685T1G 安森美 | 功能相似 | BZT52C2V7-TP和MMSZ4685T1G的区别 |
MMSZ4686T1G 安森美 | 功能相似 | BZT52C2V7-TP和MMSZ4686T1G的区别 |
MMSZ5228BT1G 安森美 | 功能相似 | BZT52C2V7-TP和MMSZ5228BT1G的区别 |
