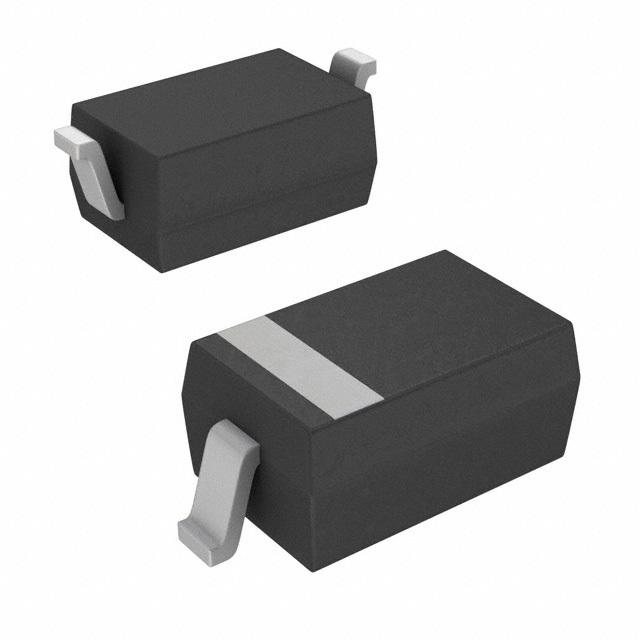

SOD-123 27V 0.5W1/2W
Zener Diode 27V 200mW ±7% Surface Mount SOD-123
得捷:
DIODE ZENER 27V 200MW SOD123
贸泽:
Zener Diodes 500mW 27V
艾睿:
This BZT52C27-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum leakage current is 0.1 μA. Its test current is 2 mA. Its maximum power dissipation is 500 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener device has a nominal voltage of 27 V and a voltage tolerance of 7%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. It is made in a single configuration.
Win Source:
DIODE ZENER 27V 200MW SOD123 / Zener Diode 27 V 200 mW ±7% Surface Mount SOD-123
额定电压DC 27.0 V
容差 ±7 %
额定功率 500 mW
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 2 mA
稳压值 27 V
正向电压Max 0.9 V
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.85 mm
宽度 1.8 mm
高度 1.2 mm
封装 SOD-123-2
工作温度 -65℃ ~ 150℃
温度系数 23.35 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BZT52C27-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZT52C27-7-F 美台 | 功能相似 | BZT52C27-TP和BZT52C27-7-F的区别 |
BZT52C27-7 美台 | 功能相似 | BZT52C27-TP和BZT52C27-7的区别 |
