PNP 晶体管,ON Semiconductor这些 ON Semiconductor 双极晶体管可放大模拟或数字信号。 它们还可切换直流或用作振荡器。 ### 标准Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.### 双极性晶体管,On SemiconductorON Semiconductor 的各种双极晶体管,包括以下类别:小信号晶体管 通用晶体管 双 NPN 和 PNP 晶体管 功率晶体管 高电压晶体管 射频双极晶体管 低噪声,双匹配和复杂的双极晶体管
小信号 PNP ,
### 标准
带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。
得捷:
TRANS PNP 30V 0.1A SC70-3
欧时:
### 小信号 PNP 晶体管,ON Semiconductor这些 ON Semiconductor 双极晶体管可放大模拟或数字信号。 它们还可切换直流或用作振荡器。 ### 标准Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.### 双极性晶体管,On SemiconductorON Semiconductor 的各种双极晶体管,包括以下类别:小信号晶体管 通用晶体管 双 NPN 和 PNP 晶体管 功率晶体管 高电压晶体管 射频双极晶体管 低噪声,双匹配和复杂的双极晶体管
立创商城:
BC858BWT1G
e络盟:
单晶体管 双极, PNP, -30 V, 100 MHz, 150 mW, -100 mA, 220 hFE
艾睿:
The three terminals of this PNP BC858BWT1G GP BJT from ON Semiconductor give it the ability to be used as either an electronic switch or amplifier. This bipolar junction transistor&s;s maximum emitter base voltage is 5 V. Its maximum power dissipation is 150 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a maximum collector emitter voltage of 30 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C.
Allied Electronics:

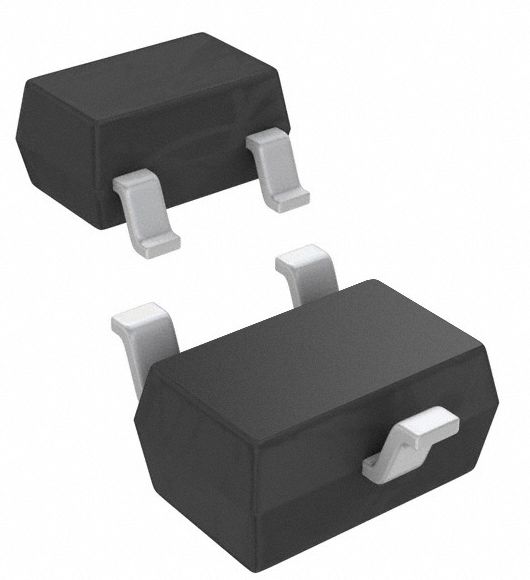

ON Semi BC858BWT1G PNP Bipolar Transistor, 0.1 A, 30 V, 3-Pin SC-70
安富利:
Trans GP BJT PNP 30V 0.1A 3-Pin SC-70 T/R
Chip1Stop:
Trans GP BJT PNP 30V 0.1A Automotive 3-Pin SC-70 T/R
Verical:
Trans GP BJT PNP 30V 0.1A Automotive 3-Pin SC-70 T/R
Win Source:
TRANS PNP 30V 0.1A SOT-323
频率 100 MHz
额定电压DC -30.0 V
额定电流 -100 mA
针脚数 3
极性 PNP
耗散功率 150 mW
击穿电压集电极-发射极 30 V
集电极最大允许电流 0.1A
最小电流放大倍数hFE 220 @2mA, 5V
额定功率Max 150 mW
直流电流增益hFE 220
工作温度Max 150 ℃
工作温度Min -50 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3
封装 SC-70-3
长度 2.2 mm
宽度 1.35 mm
高度 0.9 mm
封装 SC-70-3
材质 Silicon
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BC858BWT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
BC858BLT1G 安森美 | 类似代替 | BC858BWT1G和BC858BLT1G的区别 |
BC858BLT3G 安森美 | 类似代替 | BC858BWT1G和BC858BLT3G的区别 |
BC858BLT1 安森美 | 类似代替 | BC858BWT1G和BC858BLT1的区别 |
