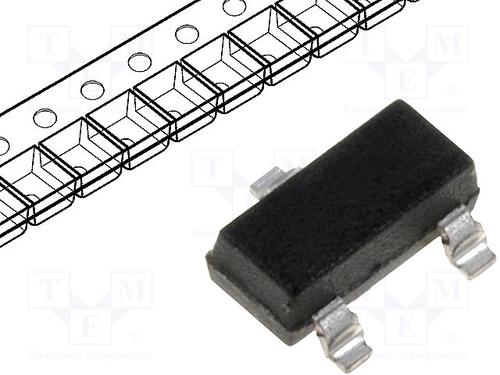

BAS70 系列 70 V 100 mA 表面贴装 硅 肖特基 二极管 - SOT-23-3
肖特基势垒,
欧时:
Infineon 二极管 BAS70E6327HTSA1 肖特基, Io=70mA, Vrev=70V, 3引脚 SOT-23封装
得捷:
DIODE SCHOTTKY 70V 70MA SOT23-3
贸泽:
肖特基二极管与整流器 70V 0.07A
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode BAS70E6327HTSA1 rectifier from Infineon Technologies. Its maximum power dissipation is 250 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This rectifier has an operating temperature range of -55 °C to 125 °C. It is made in a single configuration. Its peak non-repetitive surge current is 0.1 A, while its maximum continuous forward current is 0.07 A.
安富利:
Diode Schottky 70V 0.07A 3-Pin SOT-23 T/R
Chip1Stop:
Diode Schottky 70V 0.07A Automotive 3-Pin SOT-23 T/R
Verical:
Rectifier Diode Schottky Si 0.07A Automotive 3-Pin SOT-23 T/R
额定电压DC 70.0 V
额定电流 70.0 mA
针脚数 3
正向电压 0.88 V
耗散功率 250 mW
正向电流 70 mA
最大正向浪涌电流(Ifsm) 100 mA
正向电压Max 1 V
正向电流Max 70 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温 150 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAS70E6327HTSA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
BAS70,215 安世 | 功能相似 | BAS70E6327HTSA1和BAS70,215的区别 |
BAS70 美台 | 功能相似 | BAS70E6327HTSA1和BAS70的区别 |
