ON SEMICONDUCTOR BAV70TT1G 二极管 小信号, 共阴极, 70 V, 200 mA, 1.25 V, 6 ns, 500 mA
小信号开关,
### 标准
带 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
得捷:
DIODE ARRAY GP 100V 200MA SC75
欧时:
### 小信号开关二极管,ON Semiconductor### 标准Products with S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.### 二极管和整流器,ON Semiconductor
立创商城:
100 V 双共阴极开关二极管
艾睿:
Converting from AC to DC is simple when using a small signal switching diode BAV70TT1G rectifier from ON Semiconductor. Its maximum power dissipation is 360 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its maximum continuous forward current is 0.2 A. This rectifier has an operating temperature range of -55 °C to 150 °C. It is made in a dual common cathode configuration.
Allied Electronics:

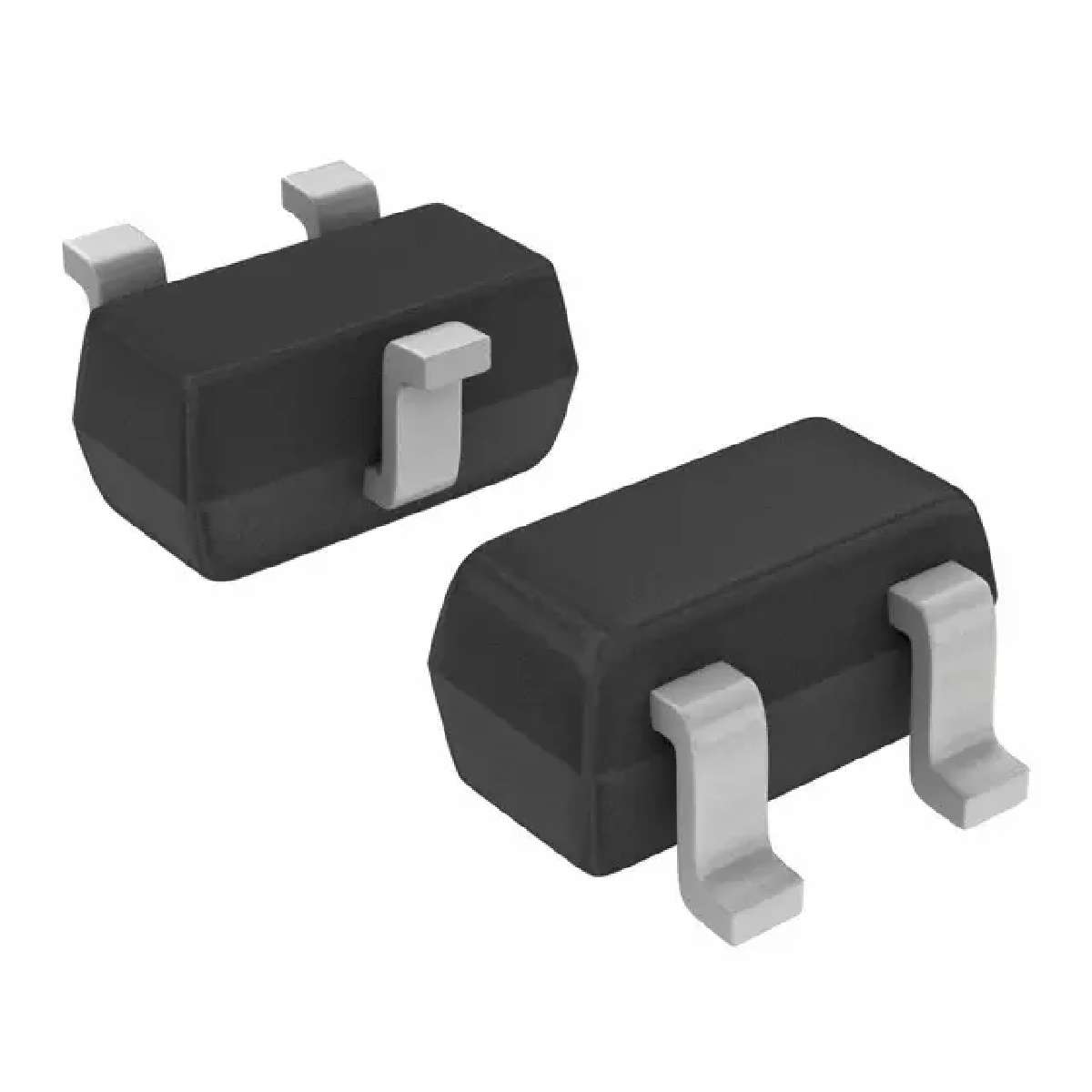

ON Semi BAV70TT1G; Dual SMT Diode; Common Cathode; 3-Pin SOT-416
安富利:
Diode Small Signal Switching 70V 0.2A 3-Pin SOT-416 T/R
Chip1Stop:
Diode Small Signal Switching 100V 0.2A Automotive 3-Pin SOT-416 T/R
Verical:
Diode Small Signal Switching 100V 0.2A Automotive 3-Pin SOT-416 T/R
Newark:
# ON SEMICONDUCTOR BAV70TT1G Bipolar BJT Array Transistor, Common Cathode, 70 V, 200 mA, 1.25 V, 6 ns, 500 mA
罗切斯特:
Diode Small Signal Switching 100V 0.2A Automotive 3-Pin SOT-416 T/R
Win Source:
DIODE ARRAY GP 100V 200MA SC75
额定电压DC 70.0 V
额定电流 200 mA
无卤素状态 Halogen Free
针脚数 3
正向电压 1.25V @150mA
耗散功率 225 mW
反向恢复时间 6 ns
正向电流 200 mA
最大正向浪涌电流(Ifsm) 500 mA
正向电压Max 1.25 V
正向电流Max 0.2 A
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 360 mW
安装方式 Surface Mount
引脚数 3
封装 SC-75-3
长度 1.65 mm
宽度 0.9 mm
高度 0.9 mm
封装 SC-75-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAV70TT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
BAV70LT1G 安森美 | 类似代替 | BAV70TT1G和BAV70LT1G的区别 |
BAV70LT3G 安森美 | 类似代替 | BAV70TT1G和BAV70LT3G的区别 |
BAV70LT3 安森美 | 类似代替 | BAV70TT1G和BAV70LT3的区别 |
