BA5417

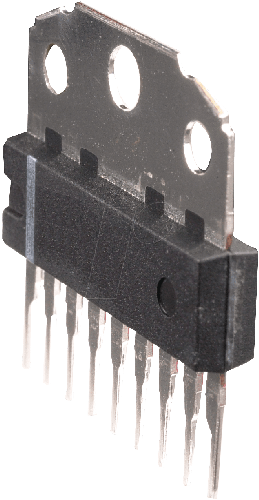

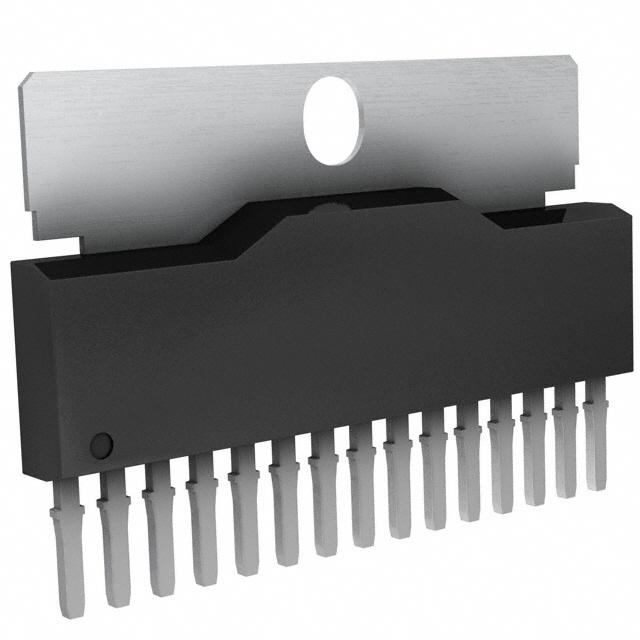

ROHM  BA5417  音频功率放大器, 2通道, 5 W, 6V 至 15V, SIP, 15 引脚

The is a Dual OTL Monolithic Power IC with two built-in, high output speaker amplifier circuits. High output of 5W x 2 can be produced when VCC=12V and RL=3R and 2.8W x 2 when VCC=9V and RL=3R. This device not only exceeds basic characteristics, but also has a built-in soft clip circuit, thermal shutdown and standby circuits.

.

Small pop noise when standby switches ON/OFF

.

Built-in circuit to prevent ripple addition when motor starts

.

Built-in thermal shutdown circuit

.

Built-in standby switch circuit

.

Built-in soft clip circuit
