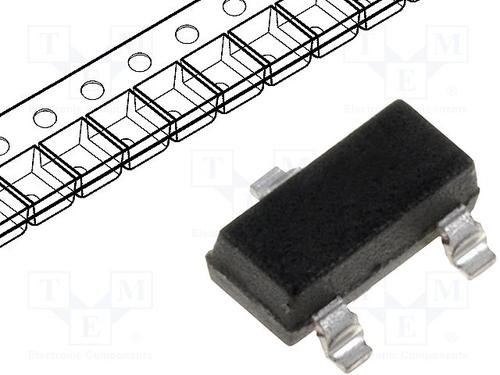

BCX70 系列 NPN 45 V 100 mA 表面贴装 硅 AF 晶体管 - SOT-23-3
小信号 NPN ,
得捷:
TRANS NPN 45V 0.1A SOT23
欧时:
Infineon BCX70KE6327HTSA1 , NPN 双极晶体管, 100 mA, Vce=45 V, HFE:380, 250 MHz, 3引脚 SOT-23封装
艾睿:
Thanks to Infineon Technologies, your circuit can handle high levels of voltage using the NPN BCX70KE6327HTSA1 general purpose bipolar junction transistor. This bipolar junction transistor&s;s maximum emitter base voltage is 6 V. Its maximum power dissipation is 330 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This bipolar junction transistor has an operating temperature range of -65 °C to 150 °C. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 6 V.
Chip1Stop:
Trans GP BJT NPN 45V 0.1A Automotive 3-Pin SOT-23 T/R
Verical:
Trans GP BJT NPN 45V 0.1A 330mW Automotive 3-Pin SOT-23 T/R
Win Source:
TRANS NPN 45V 0.1A SOT23 / Bipolar BJT Transistor NPN 45 V 100 mA 250MHz 330 mW Surface Mount PG-SOT23
频率 250 MHz
额定电压DC 45.0 V
额定电流 100 mA
极性 NPN
耗散功率 0.33 W
击穿电压集电极-发射极 45 V
集电极最大允许电流 0.1A
最小电流放大倍数hFE 380 @2mA, 5V
额定功率Max 330 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 330 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
材质 Silicon
工作温度 150℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
制造应用 For AF input stages and driver applications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
