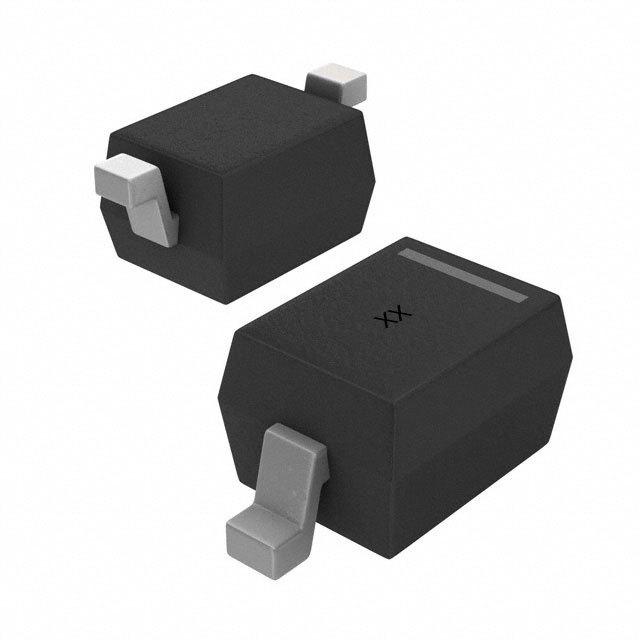

Diode Switching 75V 0.2A 2Pin SOD-323 T/R
标准 75 V 100mA 表面贴装型 SOD-323
得捷:
DIODE GEN PURP 75V 100MA SOD323
立创商城:
75V 100mA 6ns
贸泽:
Diodes - General Purpose, Power, Switching 200mA 75V
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode BAS16WX-TP rectifier from Micro Commercial Components. Its maximum power dissipation is 350 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its peak non-repetitive surge current is 2 A, while its maximum continuous forward current is 0.2 A. It is made in a single configuration. This rectifier has an operating temperature range of -55 °C to 150 °C.
Chip1Stop:
Diode Switching 75V 0.2A 2-Pin SOD-323 T/R
Verical:
Rectifier Diode Switching 75V 0.2A 6ns 2-Pin SOD-323 T/R
Win Source:
DIODE GEN PURP 75V 100MA SOD323
电容 2.00 pF
输出电流 ≤200 mA
正向电压 1.25 V
极性 Standard
反向恢复时间 6 ns
正向电流 0.1 A
正向电压Max 1.25V @150mA
正向电流Max 200 mA
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 350 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
长度 1.8 mm
宽度 1.35 mm
高度 1 mm
封装 SOD-323
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
