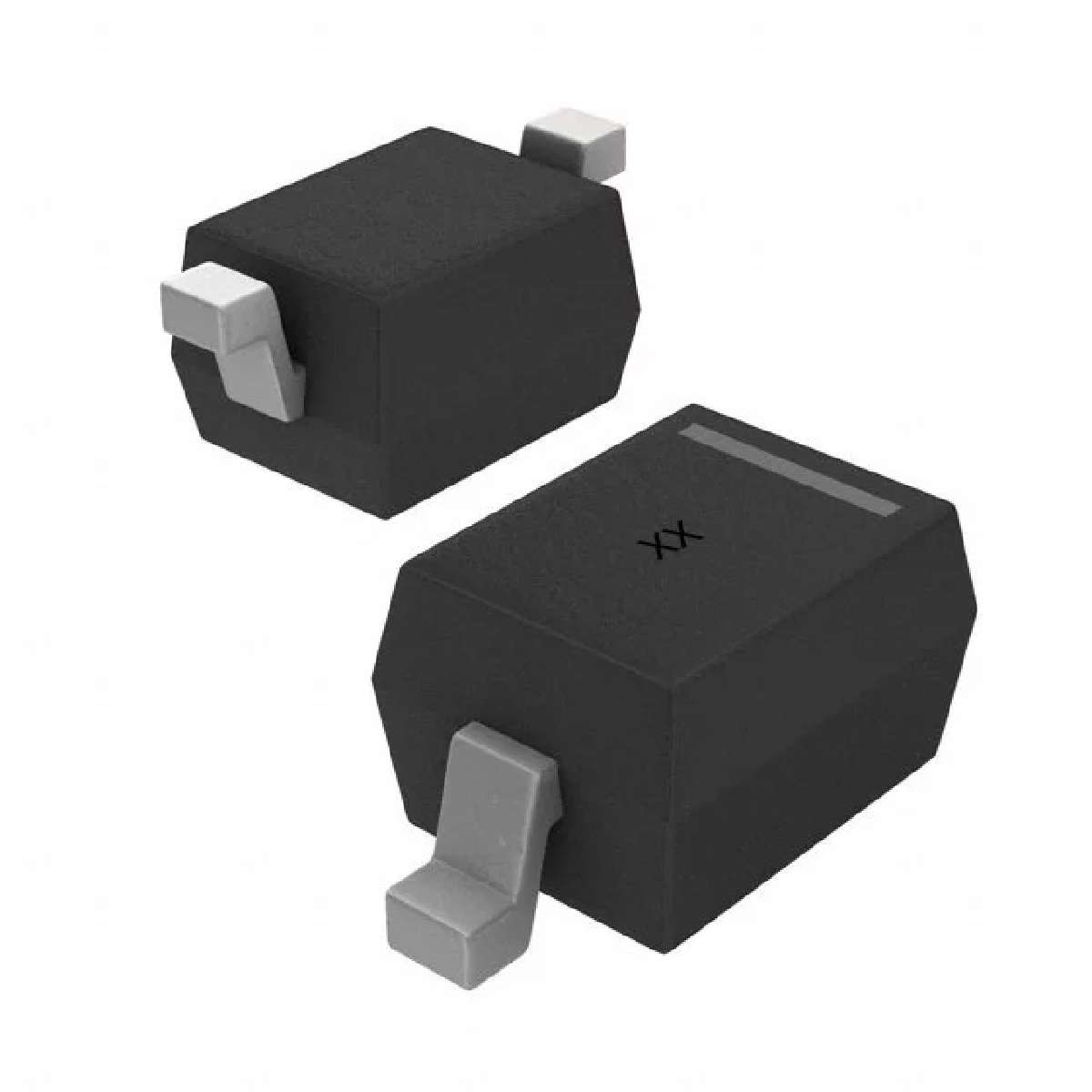

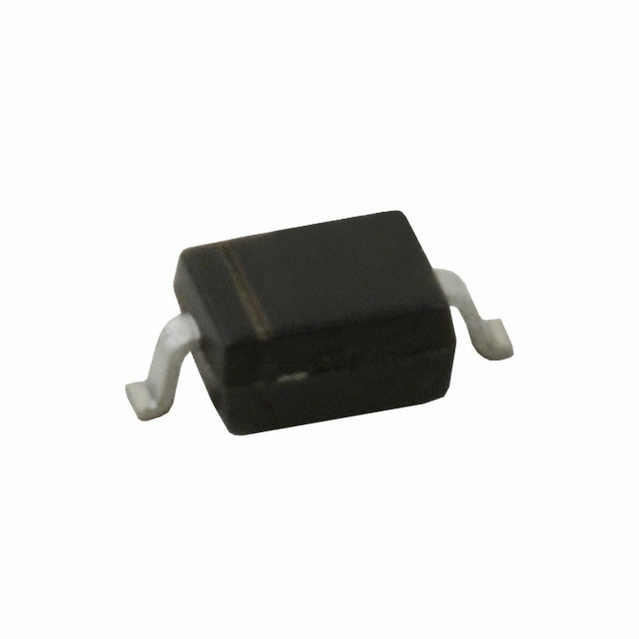

SOD-323 20V 200mW
Zener Diode 20V 200mW ±6% Surface Mount SOD-323
得捷:
DIODE ZENER 20V 200MW SOD323
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this BZT52C20S-TP zener diode from Micro Commercial Components is exactly what you need. Its test current is 5 mA. Its maximum power dissipation is 200 mW. Its maximum leakage current is 0.1 μA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. This zener device has a nominal voltage of 20 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C.
额定电压DC 20.0 V
容差 ±6 %
额定功率 200 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 5 mA
稳压值 20 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-323
长度 1.8 mm
宽度 1.35 mm
高度 1 mm
封装 SOD-323
工作温度 -65℃ ~ 150℃
温度系数 16.2 mV/℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BZT52C20S-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZT52C20S-7 美台 | 类似代替 | BZT52C20S-TP和BZT52C20S-7的区别 |
BZT52C20S-7-F 美台 | 功能相似 | BZT52C20S-TP和BZT52C20S-7-F的区别 |
BZX384-C20,115 安世 | 功能相似 | BZT52C20S-TP和BZX384-C20,115的区别 |
