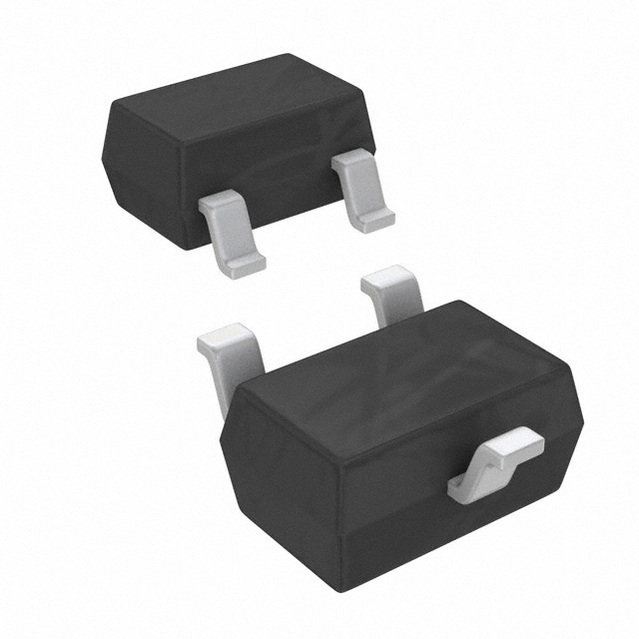

SOT-323 NPN 45V 0.1A
Features
• Low current max. 100mA
• Low voltage max. 65V
• Case Material:Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1
得捷:
TRANS NPN 45V 0.1A SOT323
e络盟:
MICRO COMMERCIAL COMPONENTS BC847BW-TP BJT, NPN, 45V, SOT-323
艾睿:
Thanks to Micro Commercial Components, your circuit can handle high levels of voltage using the NPN BC847BW-TP general purpose bipolar junction transistor. This bipolar junction transistor&s;s maximum emitter base voltage is 6 V. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This bipolar junction transistor has a minimum operating temperature of -65 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 6 V.
Chip1Stop:
Trans GP BJT NPN 45V 0.1A 3-Pin SOT-323 T/R
Verical:
Trans GP BJT NPN 45V 0.1A 200mW 3-Pin SOT-323 T/R
Newark:
# MICRO COMMERCIAL COMPONENTS BC847BW-TP Bipolar BJT Single Transistor, NPN, 45 V, 100 MHz, 150 mW, 100 mA, 200 hFE
DeviceMart:
TRANS SS NPN 45V SOT-323
Win Source:
TRANS NPN 45V 0.1A SOT323 / Bipolar BJT Transistor NPN 45 V 100 mA 100MHz Surface Mount SOT-323
频率 100 MHz
额定电压DC 50.0 V
额定电流 100 mA
针脚数 3
极性 NPN
耗散功率 150 mW
击穿电压集电极-发射极 45 V
集电极最大允许电流 0.1A
最小电流放大倍数hFE 200 @2mA, 5V
直流电流增益hFE 200
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 3
封装 SOT-323
封装 SOT-323
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BC847BW-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BC847B-TP 美微科 | 类似代替 | BC847BW-TP和BC847B-TP的区别 |
BC847BWRF 台湾半导体 | 类似代替 | BC847BW-TP和BC847BWRF的区别 |
BC847BW-7-F 美台 | 功能相似 | BC847BW-TP和BC847BW-7-F的区别 |
