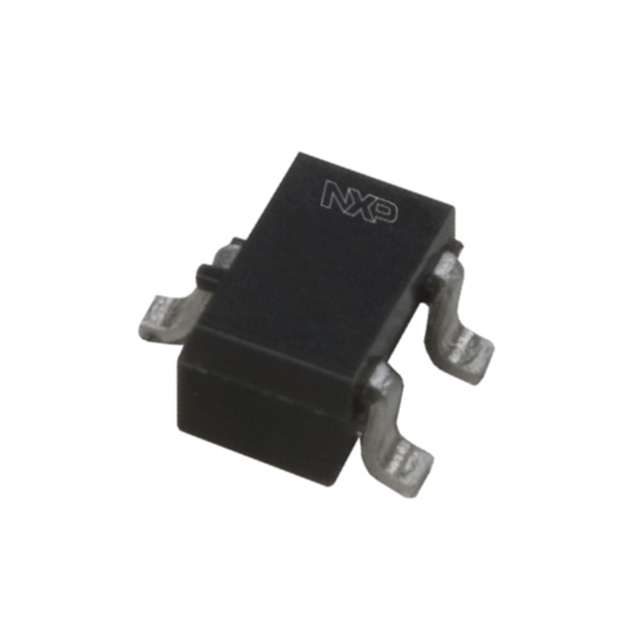

NXP BAP51-05W,115 PIN 二极管, Ifor=50mA, Vrev=50V, VHF, 3引脚 UMT封装, 使用于衰减器
PIN , Semiconductors
多种 PIN 二极管,适用于射频开关和衰减器应用。
得捷:
RF DIODE PIN 50V 240MW SOT323-3
立创商城:
BAP51-05W,115
欧时:
NXP BAP51-05W,115 PIN 二极管, Ifor=50mA, Vrev=50V, VHF, 3引脚 UMT封装, 使用于衰减器
贸泽:
PIN 二极管 TAPE-7 DIO-RFSS
艾睿:
Use an attenuator BAP51-05W,115 PIN diode from NXP Semiconductors to incorporate a password in your application. Its maximum power dissipation is 240 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a dual common cathode configuration. This PIN diode attenuator has a minimum operating temperature of -65 °C and a maximum of 150 °C.
安富利:
Diode PIN Attenuator 50V 3-Pin SC-70 T/R
富昌:
PIN Diodes TAPE-7 DIO-RFSS
Chip1Stop:
Diode PIN Attenuator 50V 3-Pin SC-70 T/R
Verical:
Diode PIN Attenuator 50V 3-Pin SC-70 T/R
RfMW:
Diode, PIN, Ct=0.3 pF @ 1 V, SOT-323, Common Cathode,
Win Source:
DIODE PIN GP 50V 50MA SOT323
正向电压 1.1 V
耗散功率 240 mW
电阻 1.5 Ω
正向电流 50 mA
正向电压Max 1.1 V
正向电流Max 50 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 240 mW
额定电压 50 V
安装方式 Surface Mount
引脚数 3
封装 SOT-323-3
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-3
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAP51-05W,115 NXP 恩智浦 | 当前型号 | 当前型号 |
BAP51-05WT/R 恩智浦 | 功能相似 | BAP51-05W,115和BAP51-05WT/R的区别 |
934055903115 恩智浦 | 功能相似 | BAP51-05W,115和934055903115的区别 |
