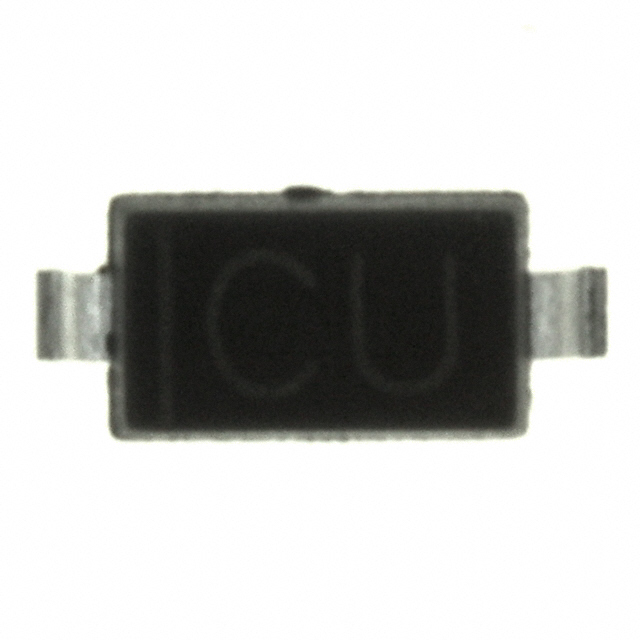

稳压二极管 500mW 15V
This zener diode from will allow you to run it in the reverse direction. Its maximum leakage current is 0.1 μA. Its maximum power dissipation is 500 mW. Its test current is 5 mA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This zener device has a nominal voltage of 15 V and a voltage tolerance of 6%. This zener diode has an operating temperature range of -65 °C to 175 °C. It is made in a single configuration.
额定电压DC 15.0 V
容差 ±6 %
额定功率 500 mW
正向电压 900 mV
耗散功率 500 mW
测试电流 5 mA
稳压值 15 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.85 mm
宽度 1.8 mm
高度 1.2 mm
封装 SOD-123-2
工作温度 -65℃ ~ 150℃
温度系数 11.1 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C15-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZT52C15-7-F 美台 | 功能相似 | BZT52C15-TP和BZT52C15-7-F的区别 |
BZV55C15-TP 美微科 | 功能相似 | BZT52C15-TP和BZV55C15-TP的区别 |
BZT52C15Q-7-F 美台 | 功能相似 | BZT52C15-TP和BZT52C15Q-7-F的区别 |
