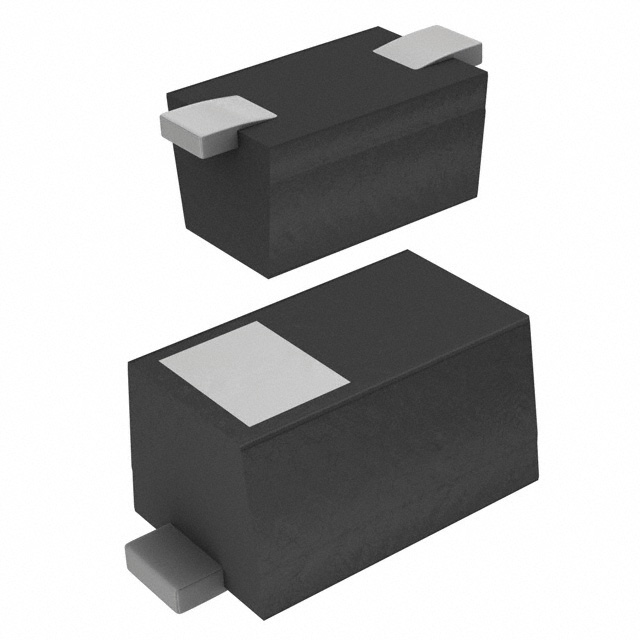

SOD-523 20V 200mW
- 齐纳 ±5% 表面贴装型 SOD-523
得捷:
DIODE ZENER 20V 100MW SOD523
艾睿:
This BZT52C20T-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum power dissipation is 200 mW. Its maximum leakage current is 0.1 μA. Its test current is 5 mA. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This zener device has a nominal voltage of 20 V and a voltage tolerance of 6%. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 150 °C.
额定电压DC 20.0 V
容差 ±5 %
额定功率 100 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 5 mA
稳压值 20 V
正向电压Max 900mV @10mA
额定功率Max 100 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-523
长度 1.3 mm
宽度 0.85 mm
高度 0.7 mm
封装 SOD-523
工作温度 -65℃ ~ 150℃
温度系数 16.2 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C20T-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZT52C5V6T-7 美台 | 功能相似 | BZT52C20T-TP和BZT52C5V6T-7的区别 |
BZT52C10T-7 美台 | 功能相似 | BZT52C20T-TP和BZT52C10T-7的区别 |
BZT52C15T-7 美台 | 功能相似 | BZT52C20T-TP和BZT52C15T-7的区别 |
