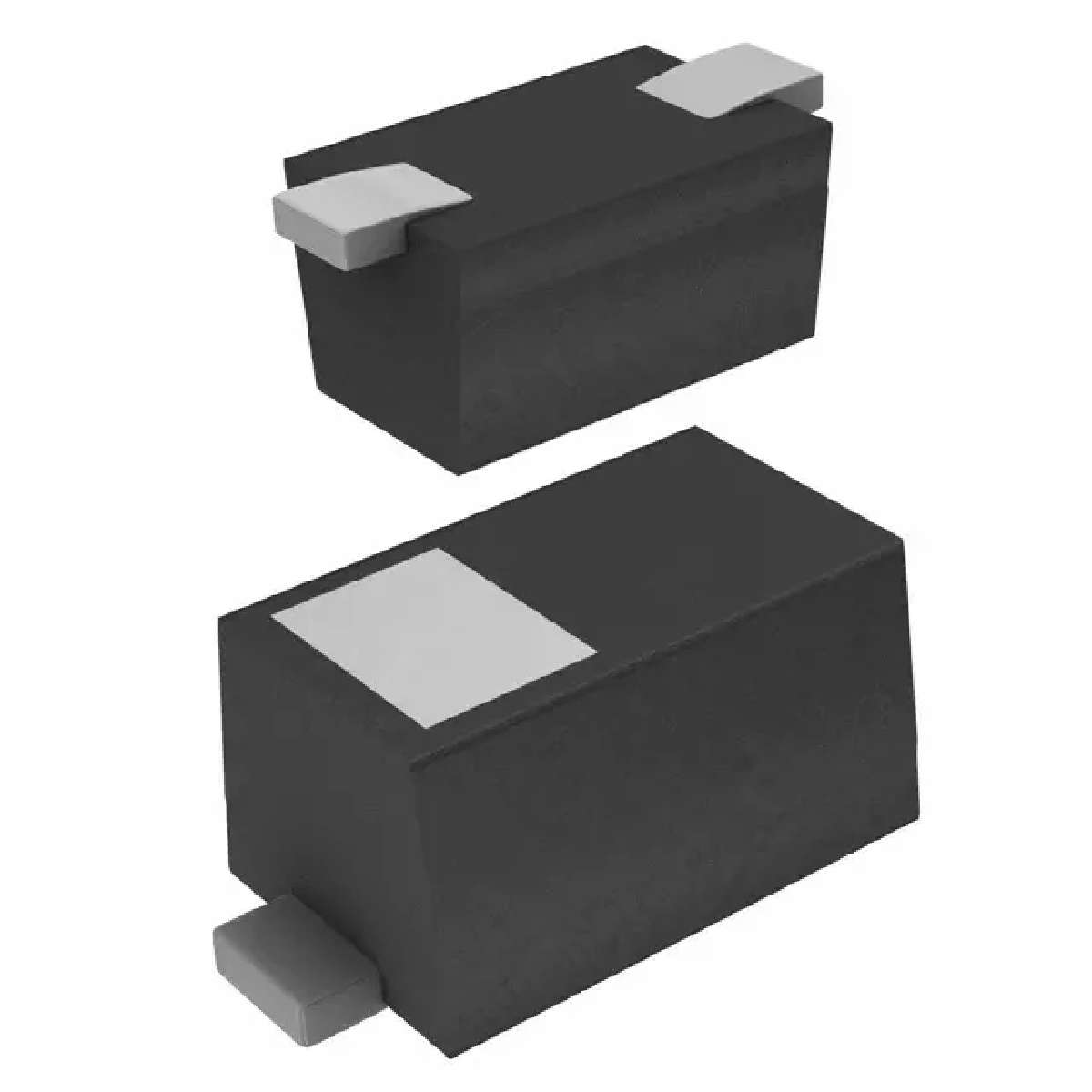

SOD-523 36V 200mW
- 齐纳 36 V 100 mW ±6% 表面贴装型 SOD-523
得捷:
DIODE ZENER 36V 100MW SOD523
立创商城:
BZT52C36T-TP
艾睿:
This BZT52C36T-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum power dissipation is 200 mW. Its test current is 2 mA. Its maximum leakage current is 0.1 μA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 36 V and a voltage tolerance of 6%. It is made in a single configuration.
Chip1Stop:
Diode Zener Single 36V 6% 200mW 2-Pin SOD-523 T/R
AMEYA360:
DIODE ZENER 36V 100MW SOD523
额定电压DC 36.0 V
容差 ±6 %
额定功率 100 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 2 mA
稳压值 36 V
正向电压Max 900mV @10mA
额定功率Max 100 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-523
长度 1.3 mm
宽度 0.85 mm
高度 0.7 mm
封装 SOD-523
工作温度 -65℃ ~ 175℃
温度系数 33.9 mV/℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C36T-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMSZ36T1G 安森美 | 功能相似 | BZT52C36T-TP和MMSZ36T1G的区别 |
MMSZ5258BT1G 安森美 | 功能相似 | BZT52C36T-TP和MMSZ5258BT1G的区别 |
BZT52C36-7-F 美台 | 功能相似 | BZT52C36T-TP和BZT52C36-7-F的区别 |
