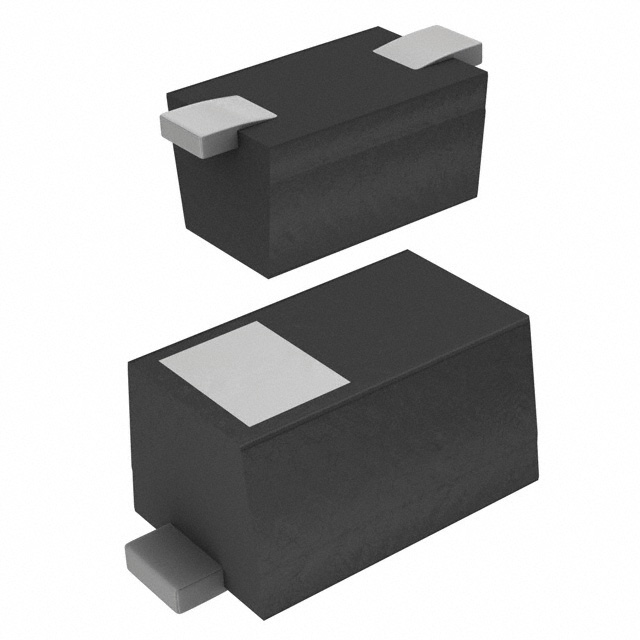

SOD-523 5.1V 200mW
This zener diode from is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its test current is 5 mA. Its maximum leakage current is 2 μA. Its maximum power dissipation is 200 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener device has a nominal voltage of 5.1 V and a voltage tolerance of 6%. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 150 °C.
额定电压DC 5.10 V
容差 ±6 %
额定功率 100 mW
正向电压 900mV @10mA
耗散功率 100 mW
测试电流 5 mA
稳压值 5.1 V
正向电压Max 900mV @10mA
额定功率Max 100 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-523
长度 1.3 mm
宽度 0.85 mm
高度 0.7 mm
封装 SOD-523
工作温度 -65℃ ~ 175℃
温度系数 -0.75 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C5V1T-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZT52C5V1T-7 美台 | 功能相似 | BZT52C5V1T-TP和BZT52C5V1T-7的区别 |
8112-632-A RAF | 功能相似 | BZT52C5V1T-TP和8112-632-A的区别 |
