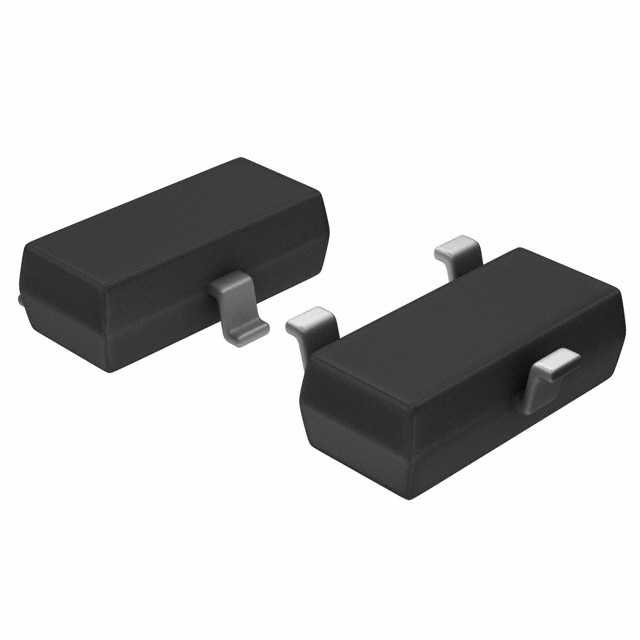

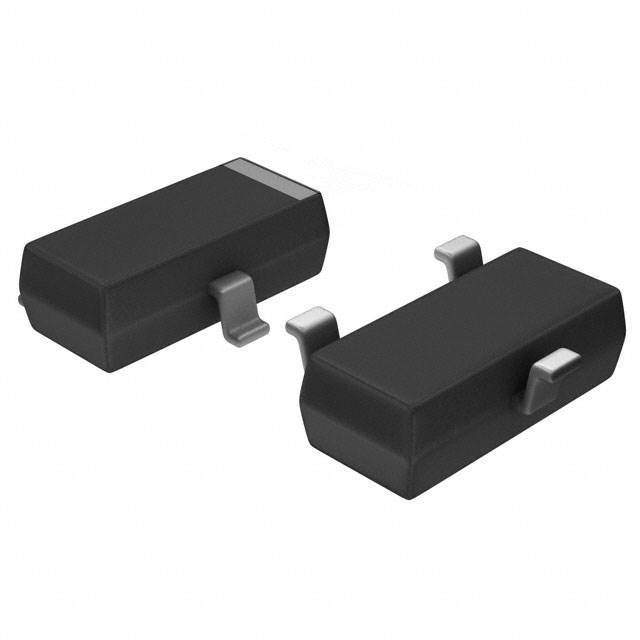

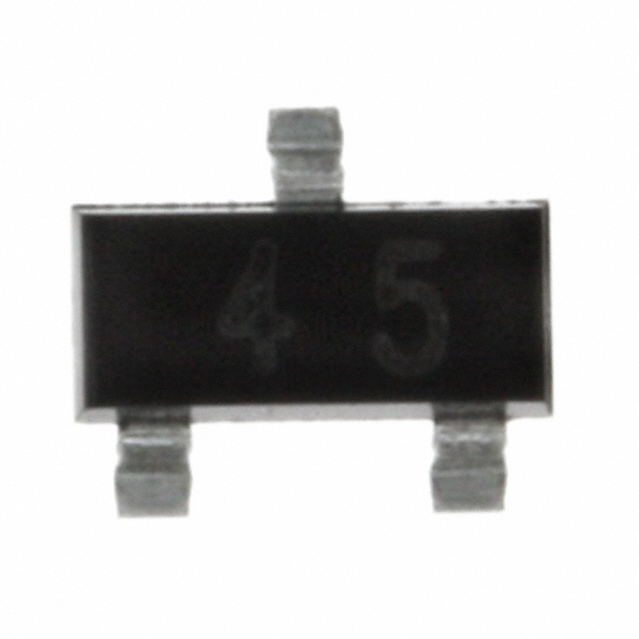

BAS40-05-TP

二极管, 肖特基整流器, 40V, SOT-23

DESCRIPTION

Various configurations of Schottky barrier’ s diodes in SOT-23 package are provided for general-purpose use in high-speed switching ,mixers and detector applications. They may also be used for signal integrity and counteract the transmission-line effects with PC board trances by clamping over/and undershoot from signal reflections with the schottky-low-threshold voltages. This type of termination also does not depend on matching the transmission line characteristic impedance, making it particularly useful where line impendance is unknown or a variable. This methode of termination can control distortions of clock, data, address, and control lines as well as provides a stabilizing effect on signal jitter. It can also significantly reduce power consumption compared to standard resistor-based termination methods.

Features

• SOT-23 Package For surface mount application

• Protects from line to VCC and line to ground

• Low forward voltage and reverse recovery characteristics

• Bidirectional-low-forward available with “ -04” suffix Figure 2

• Tape & Reel EIA Standard 481.
