BTW68-800RG

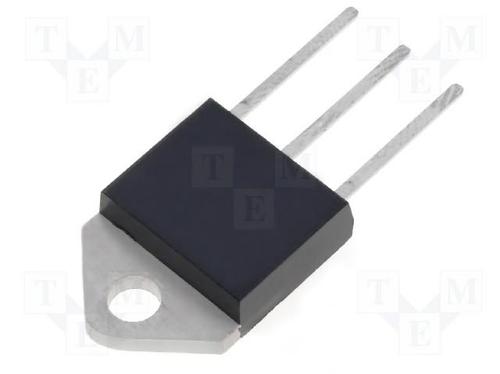

BTW68-800RG图片1

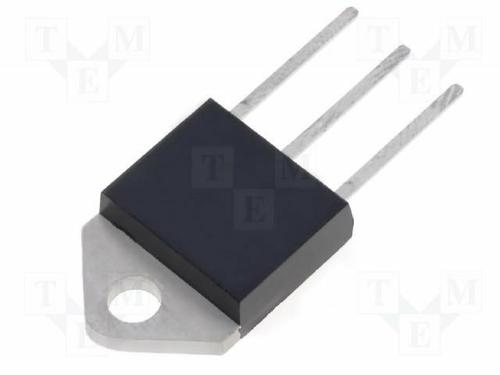

BTW68-800RG图片2

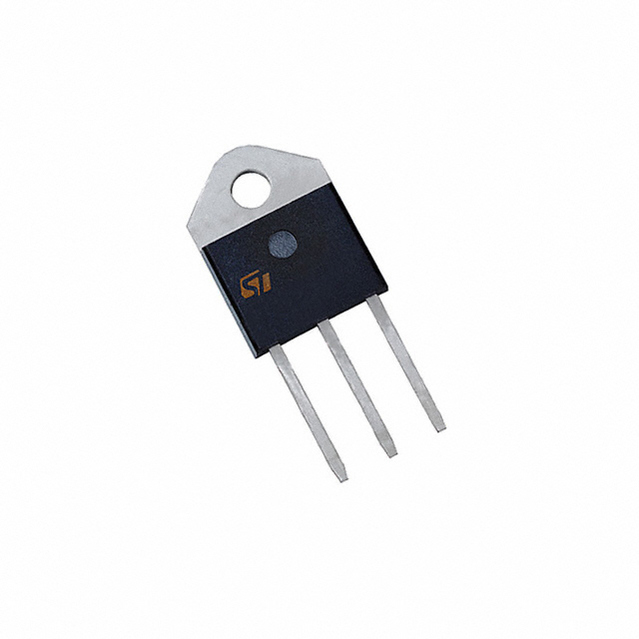

BTW68-800RG图片3

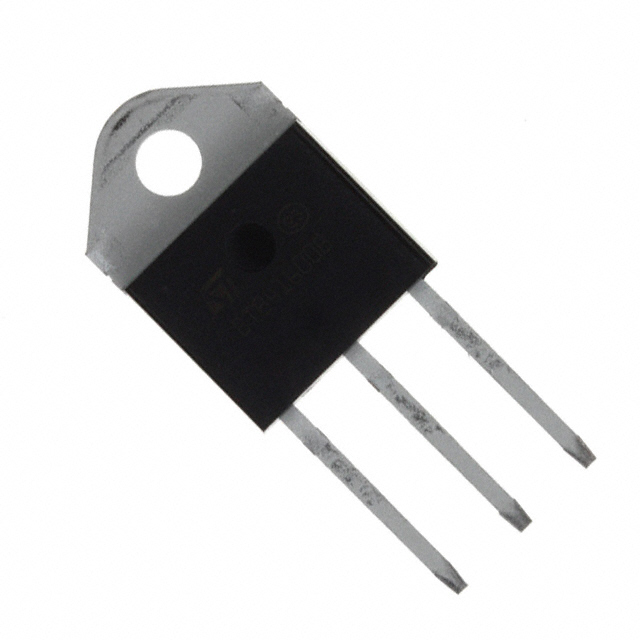

BTW68-800RG图片4
BTW68-800RG图片5
BTW68-800RG图片6
BTW68-800RG图片7
BTW68-800RG图片8
BTW68-800RG概述

BTW68系列 800 V 30 A 标准 可控硅整流器 法兰安装-TOP-3

By triggering a current you can turn on this scr thyristor manufactured from STMicroelectronics. This device has a surge current rating of 420 A. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This SCR thyristor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its repetitive peak forward blocking voltage is 800 V, while its repetitive peak reverse voltage is 800 V.

BTW68-800RG中文资料参数规格
技术参数

触点数 3

额定电压DC 800 V

额定电流 19.0 A

负载电流 19 A

针脚数 3

保持电流 75 mA

保持电流Max 75 mA

工作温度Max 125 ℃

工作温度Min -40 ℃

封装参数

安装方式 Through Hole

引脚数 3

封装 TOP-3

外形尺寸

封装 TOP-3

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买BTW68-800RG
型号: BTW68-800RG
描述:BTW68系列 800 V 30 A 标准 可控硅整流器 法兰安装-TOP-3
