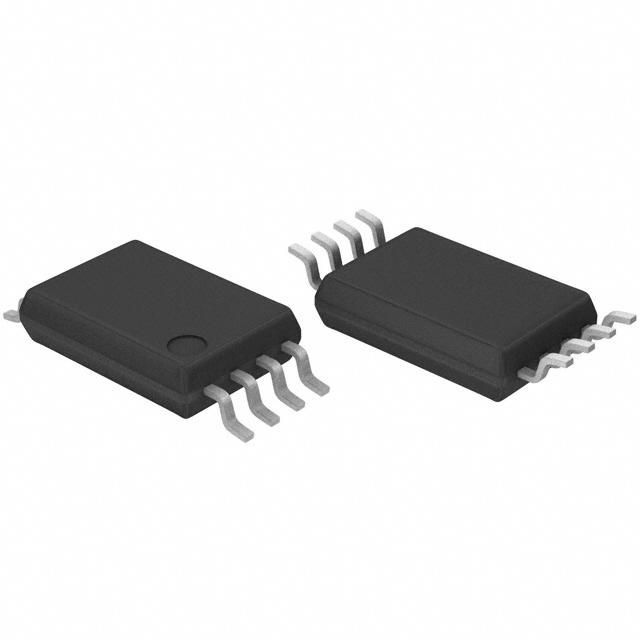

BA4560RFV-E2

低噪声运算放大器 Low Noise Operational Amplifiers

●Description

General-purpose BA4558 / BA4560 / BA15218 / BA14741 / BA15532 / BA4510 family and high-reliability BA4558R / BA4560R / BA4580R / BA2115 family integrate two or four independent Op-Amps on a single chip. Especially, this series is suitable for any audio applications due to low noise and low distortion characteristics and are usable for other many applications by wide operating supply voltage range. BA4558R/BA4560R/BA4580R/BA2115 are high-reliability products with extended operating temperature range and high ESD tolerance.

●Features

 1  High voltage gain, low noise, low distortion

 2  Internal phase compensation

 3  No latch up immunity

 4  Wide operating supply voltage

±4.0[V]～±15.0[V]split supply  BA4558/BA4560/BA4558R/BA4560R family

±2.0[V]～±16.0[V]split supply  BA4580R/BA15218 family

±2.0[V]～±18.0[V]split supply  BA14741 family

±3.0[V]～±20.0[V]split supply  BA15532 family

±1.0[V]～±3.5[V]split supply  BA4510 family

±1.0[V]～±7.0[V]split supply  BA2115 family

 5  Internal ESD protection

  Human body mode HBM ±5000[V]Typ. BA4558R/BA4560R/BA4580R/BA2115 family

 6  Wide temperature range

-40[℃]～+85[℃] BA4558/BA4560/BA15218/BA14741/BA2115 family

-40[℃]～+105[℃] BA4558R/BA4560R/BA4580R family
