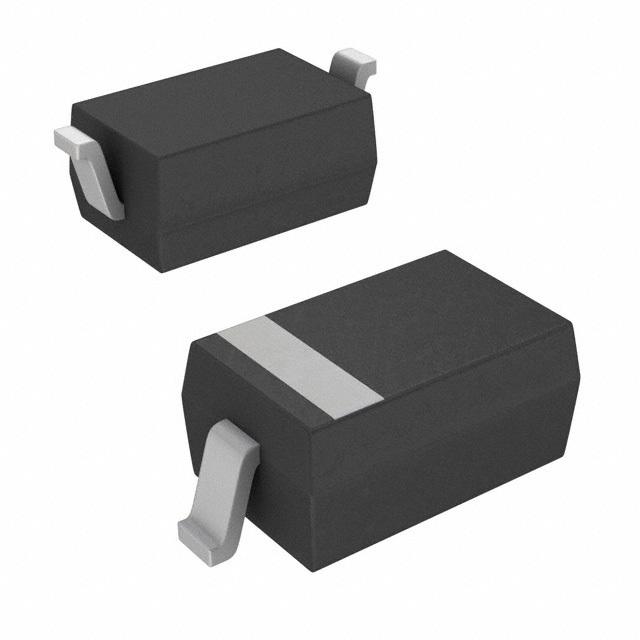

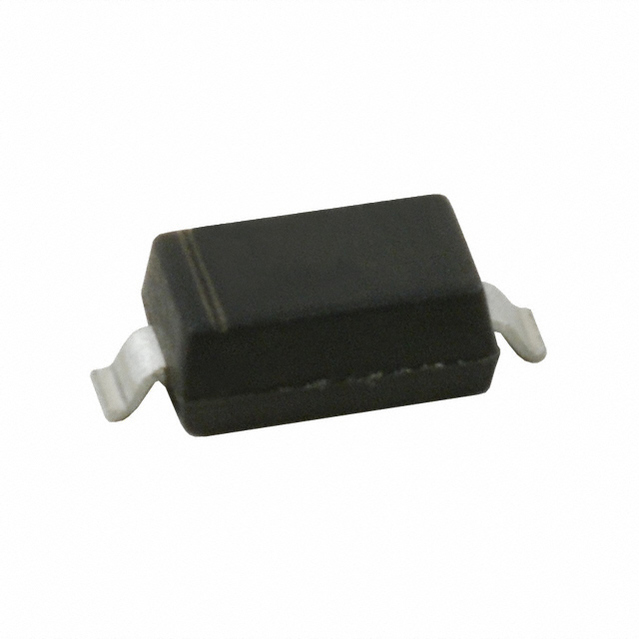

BAT42W Series 30V 200mA 200mW Surface Mount Schottky Diode - SOD-123
Diode Schottky 30V 200mA DC Surface Mount SOD-123
得捷:
DIODE SCHOTTKY 30V 200MA SOD123
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode BAT42W-TP rectifier from Micro Commercial Components. Its maximum power dissipation is 200 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a single configuration. This rectifier has an operating temperature range of -55 °C to 125 °C. Its peak non-repetitive surge current is 0.5 A, while its maximum continuous forward current is 0.2 A.
Chip1Stop:
Diode Schottky 30V 0.2A 2-Pin SOD-123 T/R
Verical:
Diode Schottky 30V 0.2A 2-Pin SOD-123 T/R
Win Source:
DIODE SCHOTTKY 30V 200MA SOD123 / Diode Schottky 30 V 200mA DC Surface Mount SOD-123
额定电压DC 30.0 V
额定电流 200 mA
电容 7.00 pF
输出电流 ≤200 mA
正向电压 1V @200mA
极性 Standard
热阻 300 ℃/W
反向恢复时间 5 ns
正向电流 200 mA
最大正向浪涌电流(Ifsm) 0.5 A
正向电压Max 1V @200mA
正向电流Max 200 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123
封装 SOD-123
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAT42W-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BAT43WS-7-F 美台 | 功能相似 | BAT42W-TP和BAT43WS-7-F的区别 |
BAT42W-7-F 美台 | 功能相似 | BAT42W-TP和BAT42W-7-F的区别 |
BAT42WS-7-F 美台 | 功能相似 | BAT42W-TP和BAT42WS-7-F的区别 |
