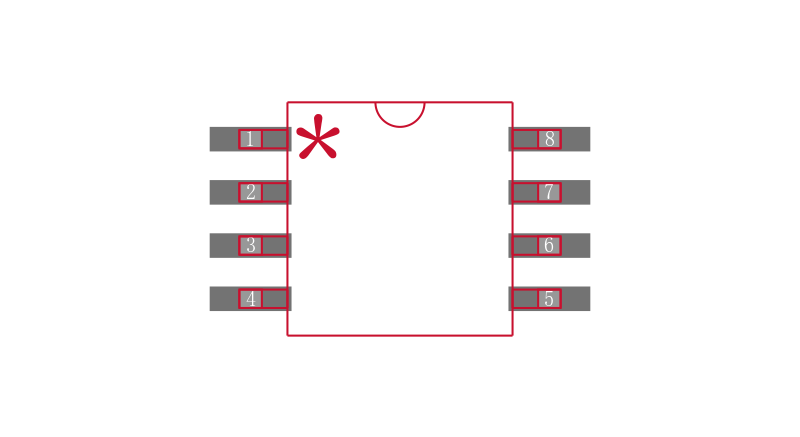

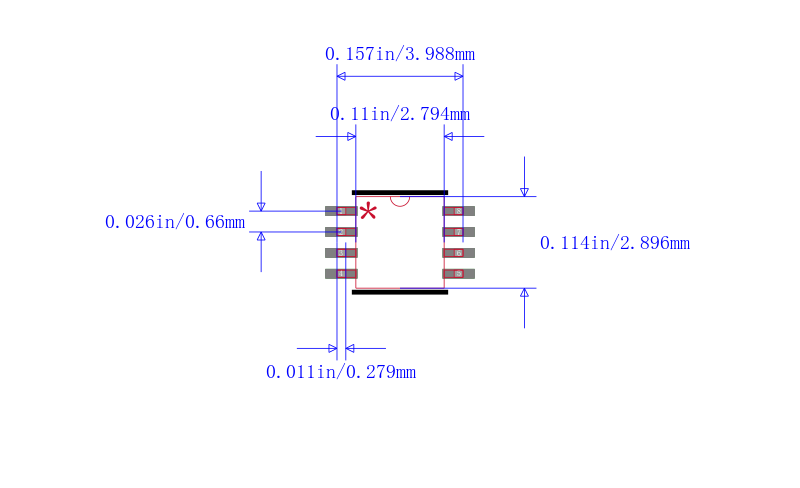

运算放大器, 2个放大器, 1.2 MHz, 1.2 V/µs, 4V至36V, ± 2V至± 18V, MSOP, 8 引脚
●Description
General-purpose BA10358/BA10324A family and high-reliability BA2904S/BA2904/BA2902S/BA2902 family and automotive BA2904HFVM-C integrate two or four independent Op-Amps andphase compensation capacitors on a single chip andhave some features of high-gain, low power consumption,and operating voltage range of 3[V] to 32[V] single powersupply . BA3404 family is realized high speed operation andreduce the crossover distortions that compare with BA10358/ BA2904 family.
●Characteristics
1 Operable with a single power supply
2 Wide operating supply voltage
+3.0[V]～+32.0[V]single supply BA10358/BA10324A/BA2904S/BA2904/BA2902S/BA2902 family,BA2904HFVM-C
+4.0[V]～+36.0[V]single supply BA3404 family

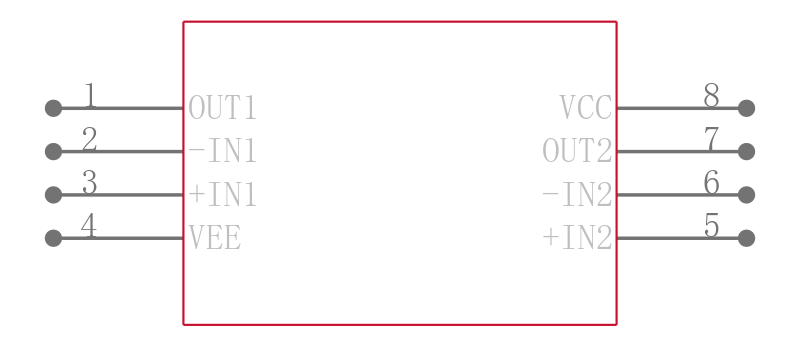

3 Standard Op-Amp Pin-assignments
4 Input and output are operable GND sense
5 Internal phase compensation type
6 Low supply current
7 High open loop voltage gain
8 Internal ESD protection
Human body modelHBM ±5000[V]Typ. BA2904S/BA2904/BA2902S/BA2902/BA3404 family,BA2904HFVM-C
9 Gold PAD BA2904S/BA2904/BA2902S/BA2902/BA3404 family,BA2904HFVM-C
10 Wide temperature range
-40[℃]～+125[℃] BA2904/BA2902 family,BA2904HFVM-C
-40[℃]～+105[℃] BA2904S/BA2902S family
-40[℃]～+85[℃] BA10358/BA10324/BA3404 family
