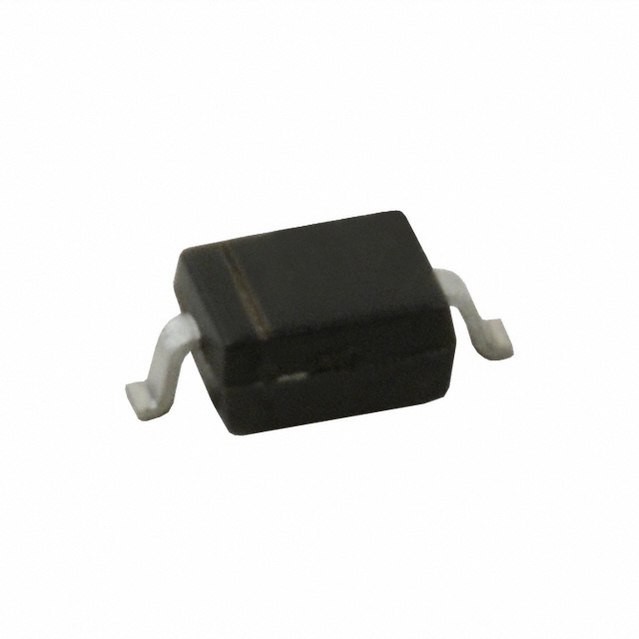

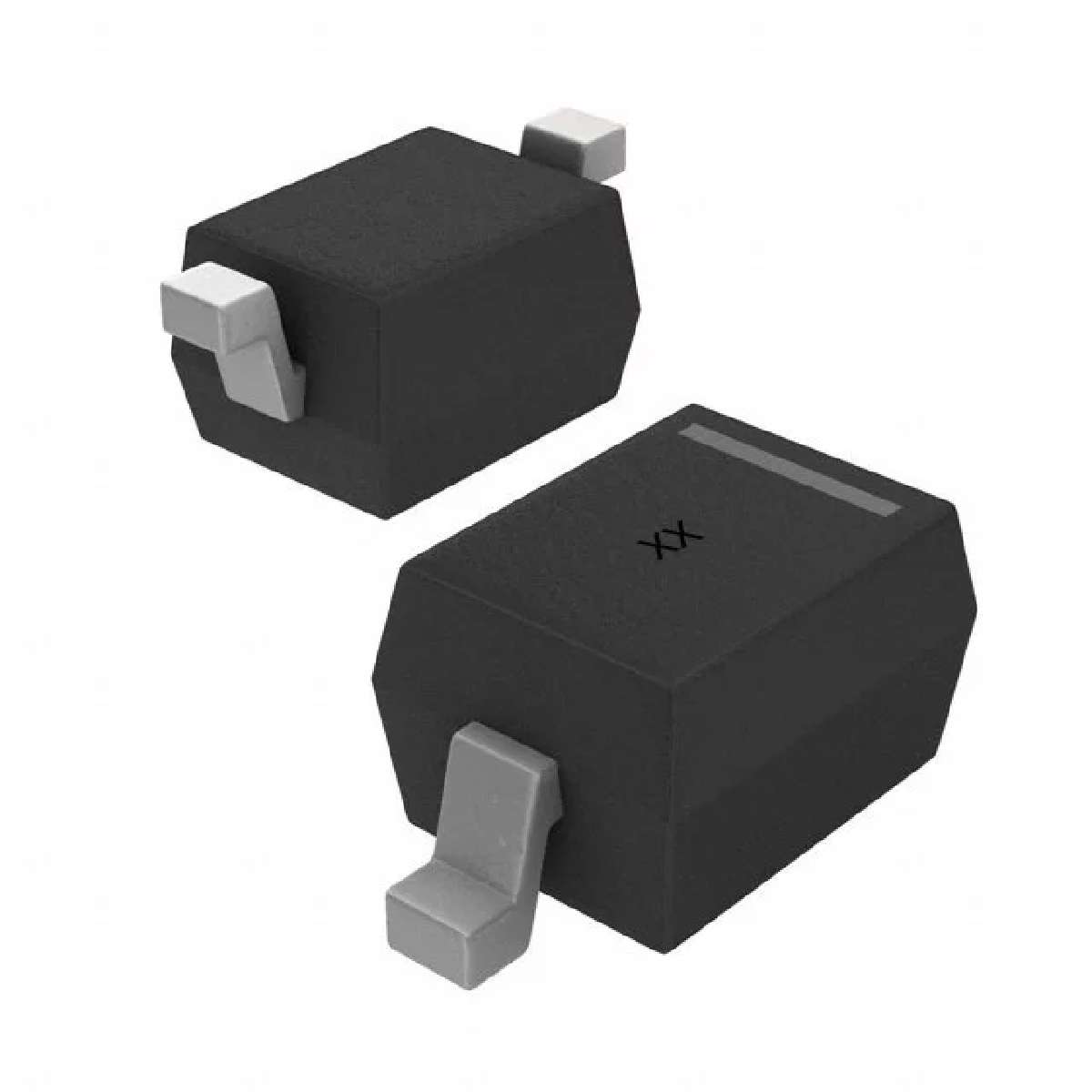

Diode Schottky 30V 0.1A 2Pin SOD-323 T/R
Diode Schottky 30V 100mA Surface Mount SOD-323
得捷:
DIODE SCHOTTKY 30V 100MA SOD323
艾睿:
Converting from AC to DC is simple when using a Schottky diode BAT42WS-TP rectifier from Micro Commercial Components. Its maximum power dissipation is 200 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its peak non-repetitive surge current is 0.5 A, while its maximum continuous forward current is 0.1 A. It is made in a single configuration. This rectifier has an operating temperature range of -55 °C to 125 °C.
Chip1Stop:
Diode Schottky 30V 0.1A 2-Pin SOD-323 T/R
Verical:
Rectifier Diode Schottky 30V 0.2A 5ns 2-Pin SOD-323 T/R
Win Source:
DIODE SCHOTTKY 30V 100MA SOD323
额定电压DC 30.0 V
额定电流 200 mA
电容 10.0 pF
输出电流 ≤200 mA
正向电压 1V @200mA
极性 Standard
耗散功率 200 mW
热阻 625℃/W RθJA
反向恢复时间 5 ns
正向电流 0.1 A
最大正向浪涌电流(Ifsm) 0.5 A
正向电压Max 1V @200mA
正向电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
长度 1.8 mm
宽度 1.35 mm
高度 1 mm
封装 SOD-323
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAT42WS-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BAT42WS 威世 | 类似代替 | BAT42WS-TP和BAT42WS的区别 |
BAT42WS-V-GS18 威世 | 类似代替 | BAT42WS-TP和BAT42WS-V-GS18的区别 |
BAT42WS-7-F 美台 | 功能相似 | BAT42WS-TP和BAT42WS-7-F的区别 |
