高速与高电压运算放大器 High Speed with High Voltage Operational Amplifiers
●General Description
BA3472,BA3472R,BA3474,BA3474R are dual and quad high slew rate amplifier with wide operating voltage range +3V to +36Vsingle supply. Especially, there characteristics are high slew rate 10V/μs and wide gain band width 4MHz.
●Features
Operable with a single power supply
Wide operating supply voltage
Internal phase compensation
High open loop voltage gain
Internal ESD protection circuit
Operable low input voltage around GND level
Wide output voltage range
●Application
Current sense application
Buffer application amplifier
Active filter
Consumer electronics
供电电流 4 mA
电路数 2
通道数 2
针脚数 8
耗散功率 0.69 W
共模抑制比 60 dB
带宽 4 MHz
增益频宽积 4 MHz
输入补偿电压 1.5 mV
输入偏置电流 100 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 4 MHz
耗散功率Max 690 mW
共模抑制比Min 60 dB
电源电压Max 36 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 8

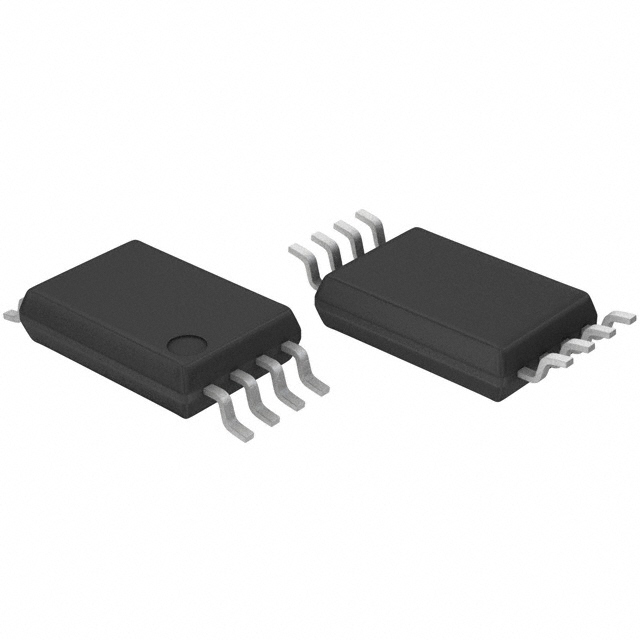

封装 SSOP-8
长度 3 mm
宽度 4.4 mm
高度 1.15 mm
封装 SSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
