BB-BONE-SERL-03

CIRCUITCO  BB-BONE-SERL-03  开发板, BEAGLEBONE系列, 附加RS232

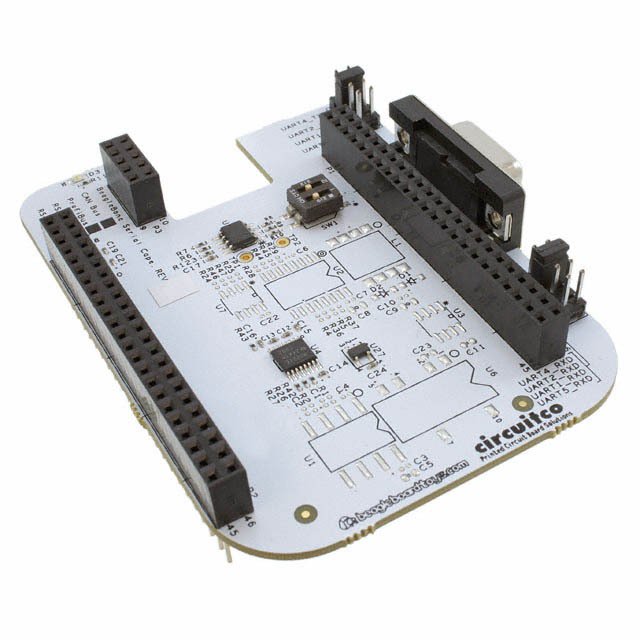

is a BeagleBone RS232 Cape provides an RS232 interface to the BeagleBone via a standard D-Sub 9 female serial connector. This connector is located to the side so it doesn"t interfere with any capes stacked above it. By default, the BeagleBone RS232 Cape uses UART2 port on the AM335x for RS232 connection, however users will have the freedom to choose among UART1, UART2, UART4, and UART5 ports.

.

UART1, 2, 4, 5 compatible serial ports

.

Power 3.3V via expansion header

.

Power LED indicator

.

Two 46 position connectors

.

One 10 position connector

.

One D-Sub9 serial connector

.

Four layer board

.

EEPROM Support
