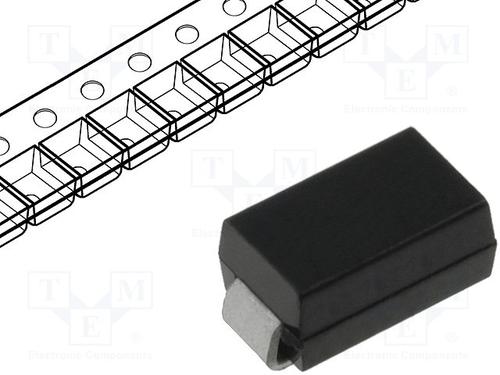

VISHAY BYG10D-E3/TR 标准恢复二极管, 雪崩, 单, 200 V, 1.5 A, 1.15 V, 4 µs, 30 A
The is a standard Avalanche SMD Rectifier with solderable matte tin-plated leads. It is suitable for use in general-purpose rectification of power supplies, inverters, converters and freewheeling diodes.
额定电流 1.50 A
负载电流 1.15 A
针脚数 2
正向电压 1.15V @1.5A
反向恢复时间 4 µs
正向电流 1.5 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.15 V
正向电流Max 1.5 A
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.5 mm
宽度 2.79 mm
高度 2.09 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Automotive, Power Management, Consumer Electronics, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BYG10D-E3/TR Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
BYG10DHE3/TR 威世 | 完全替代 | BYG10D-E3/TR和BYG10DHE3/TR的区别 |
BYG10D-E3/TR3 威世 | 类似代替 | BYG10D-E3/TR和BYG10D-E3/TR3的区别 |
BYG10DHE3/TR3 威世 | 类似代替 | BYG10D-E3/TR和BYG10DHE3/TR3的区别 |
