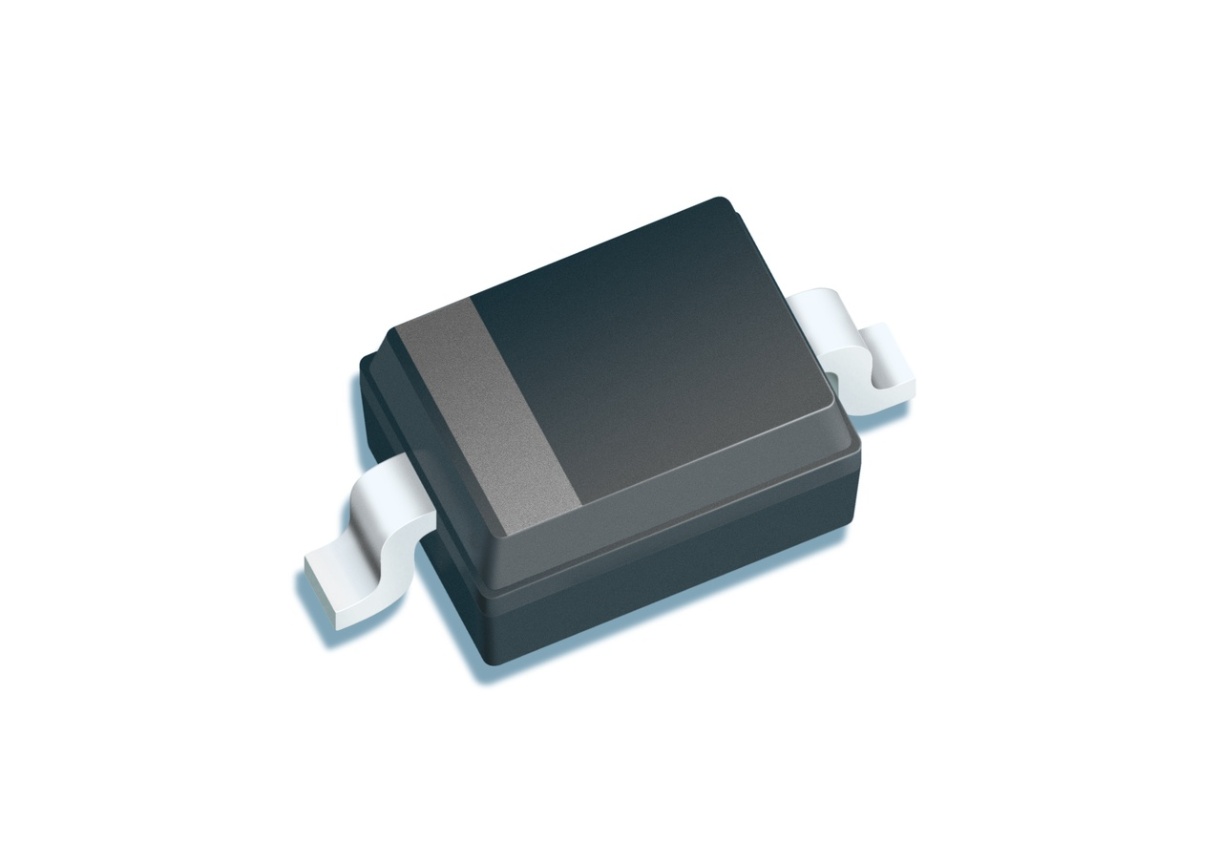

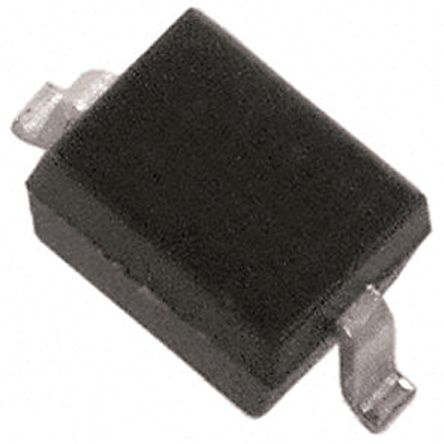

INFINEON BAT60BE6327HTSA1 肖特基整流器, AEC-Q101, 单, 10 V, 3 A, SOD-323, 2 引脚, 600 mV
肖特基势垒，
欧时:
Infineon 二极管 BAT60BE6327HTSA1 肖特基, Io=3A, Vrev=10V, 2引脚 SOD-323封装
得捷:
DIODE SCHOTTKY 10V 3A SOD323-2
立创商城:
10V 3A 480mV@1A
贸泽:
Schottky Diodes & Rectifiers Silicon Schottky Diode
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode BAT60BE6327HTSA1 rectifier from Infineon Technologies. Its maximum power dissipation is 1350 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 5 A, while its maximum continuous forward current is 3 A. This rectifier has an operating temperature range of -55 °C to 125 °C.
Chip1Stop:
Diode Schottky 10V 3A Automotive 2-Pin SOD-323 T/R
Verical:
Rectifier Diode Schottky 3A Automotive 2-Pin SOD-323 T/R
Win Source:
DIODE SCHOTTKY 10V 3A SOD323-2
额定电压DC 10.0 V
额定电流 3.00 A
输出电流 ≤3.00 A
针脚数 2
正向电压 0.48 V
极性 Standard
耗散功率 1.35 W
正向电流 3 A
最大正向浪涌电流（Ifsm） 5 A
正向电压Max 600 mV
正向电流Max 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温 150℃ Max
耗散功率Max 1350 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323-2
长度 1.7 mm
宽度 1.25 mm
高度 0.85 mm
封装 SOD-323-2
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, ESD Electrostatic discharge sensitive device, observe handling precaution!
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BAT60BE6327HTSA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
BAT 60B E6433 英飞凌 | 功能相似 | BAT60BE6327HTSA1和BAT 60B E6433的区别 |
