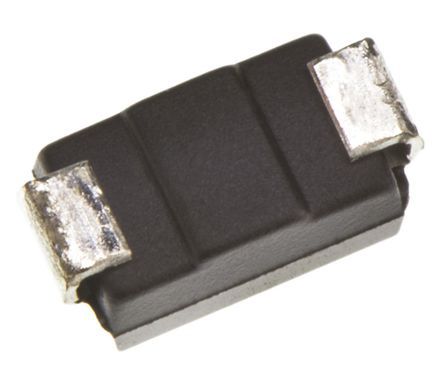

BYS10-45-E3/TR3图片1

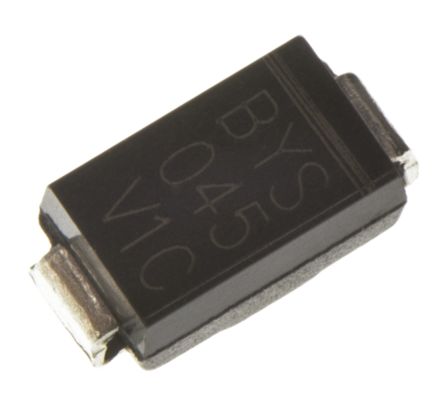

BYS10-45-E3/TR3图片2
BYS10-45-E3/TR3图片3
BYS10-45-E3/TR3图片4
BYS10-45-E3/TR3图片5
BYS10-45-E3/TR3图片6
BYS10-45-E3/TR3图片7
BYS10-45-E3/TR3图片8
BYS10-45-E3/TR3图片9
BYS10-45-E3/TR3图片10
BYS10-45-E3/TR3图片11
BYS10-45-E3/TR3图片12
BYS10-45-E3/TR3图片13
BYS10-45-E3/TR3图片14
BYS10-45-E3/TR3图片15
BYS10-45-E3/TR3概述

VISHAY  BYS10-45-E3/TR3  肖特基整流器, 单, 45 V, 1.5 A, DO-214AC, 2 引脚, 500 mV

The is a surface-mount Schottky Barrier Rectifier with solderable matte tin-plated terminals. It is suitable for use in low voltage high frequency inverters, free-wheeling, DC/DC converters and polarity protection applications.

.
Colour band denotes the cathode end
.
Ideal for automated placement
.
Guard-ring for overvoltage protection
.
Low power losses, high efficiency
.
Very low switching losses
.
High surge capability
.
AEC-Q101 qualified
BYS10-45-E3/TR3中文资料参数规格
技术参数

针脚数 2

正向电压 500mV @1A

正向电流 1.5 A

最大正向浪涌电流(Ifsm) 30 A

正向电压Max 500 mV

正向电流Max 1.5 A

工作温度Max 150 ℃

工作温度Min -65 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 DO-214AC

外形尺寸

长度 4.6 mm

宽度 2.9 mm

封装 DO-214AC

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 Automotive, Industrial, Power Management, Commercial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买BYS10-45-E3/TR3
型号: BYS10-45-E3/TR3
描述:VISHAY  BYS10-45-E3/TR3  肖特基整流器, 单, 45 V, 1.5 A, DO-214AC, 2 引脚, 500 mV
替代型号BYS10-45-E3/TR3
型号/品牌 代替类型 替代型号对比

BYS10-45-E3/TR3

Vishay Semiconductor 威世

当前型号

当前型号

BYS10-35HE3/TR3

威世

完全替代

BYS10-45-E3/TR3和BYS10-35HE3/TR3的区别

BYS10-45-E3/TR

威世

类似代替

BYS10-45-E3/TR3和BYS10-45-E3/TR的区别

BYS10-35-E3/TR

威世

类似代替

BYS10-45-E3/TR3和BYS10-35-E3/TR的区别
