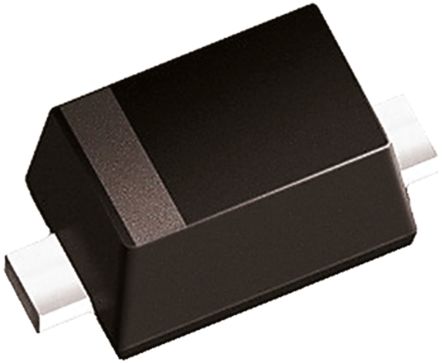

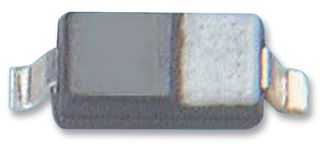

INFINEON BAR8802VH6327XTSA1 二极管, 射频/PIN, AEC-Q101, 单, 0.6 ohm, 80 V, SC-79, 2引脚, 0.3 pF
PIN ,
多种 PIN 二极管,适用于射频开关和衰减器应用。
得捷:
RF DIODE PIN 80V 250MW SC79-2
欧时:
Infineon BAR8802VH6327XTSA1 PIN 二极管, Ifor=100mA, Vrev=80V, 2引脚 SC-79封装, 使用于天线开关
立创商城:
80V
艾睿:
Create a password for your user interface with a switch BAR8802VH6327XTSA1 PIN diode from Infineon Technologies. Its maximum power dissipation is 250 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This PIN diode attenuator has a minimum operating temperature of -55 °C and a maximum of 125 °C. It is made in a single configuration.
安富利:
Diode PIN Antenna Switch 80V 2-Pin SC-79 T/R
Chip1Stop:
Diode PIN Switch 80V 100mA Automotive 2-Pin SC-79 T/R
Verical:
Diode PIN Switch 80V 100mA Automotive 2-Pin SC-79 T/R
Newark:
# INFINEON BAR8802VH6327XTSA1 DIODE, RF, 0.3PF, 80V, SC-79
Win Source:
DIODE RF PIN 80V 100MA SC79
电容 0.3 pF
正向电压 1.2 V
耗散功率 0.25 W
正向电流 100 mA
击穿电压 80 V
正向电压Max 1.2 V
正向电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 2
封装 SC-79-2
长度 1.2 mm
宽度 0.8 mm
高度 0.55 mm
封装 SC-79-2
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 车用, Industrial, 射频通信, High Speed Data Networks, 电源管理, Power Management, Wireless Communications, RF Communications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
