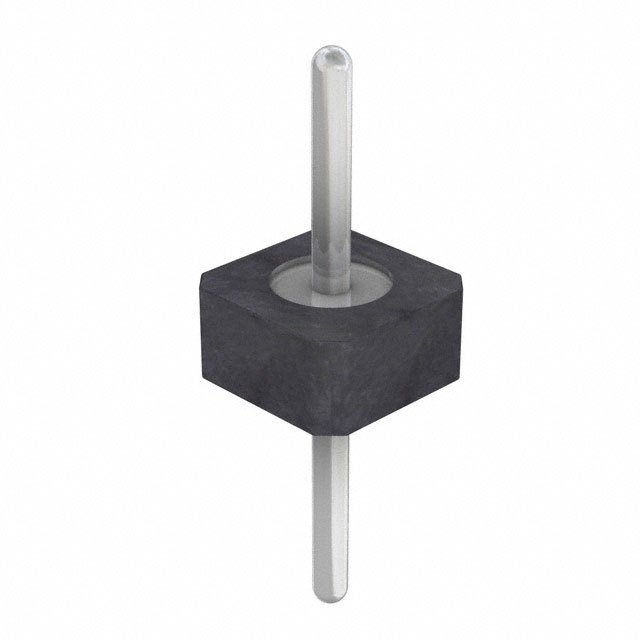

BBL-101-T-E

圆针

Connector Header Through Hole 1 position -

得捷:
CONN HEADER LOPRO 1POS .100 TIN

欧时:
.100" Low Profile 1 P 1 Row HDR Term Str

立创商城:
圆针

艾睿:
Easily mount this unshrouded BBL-101-T-E header connector from Samtec onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s a single contact that is made out of phosphor bronze|brass and plated with tin over nickel. It has a header type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. BBL-101-T-E is housed in black polyester. This product is 2.54 mm long, 4.52 mm tall and 2.54 mm deep.

安富利:
Conn Unshrouded Header HDR 1 POS Solder ST Thru-Hole Tube

Newark:
# SAMTEC  BBL-101-T-E  Board-To-Board Connector, 2.54 mm, 1 Contacts, Header, BBL Series, Solder, 1 Rows

Electro Sonic:
.100" Low Profile Single Row, Screw Machine Terminal Strip
