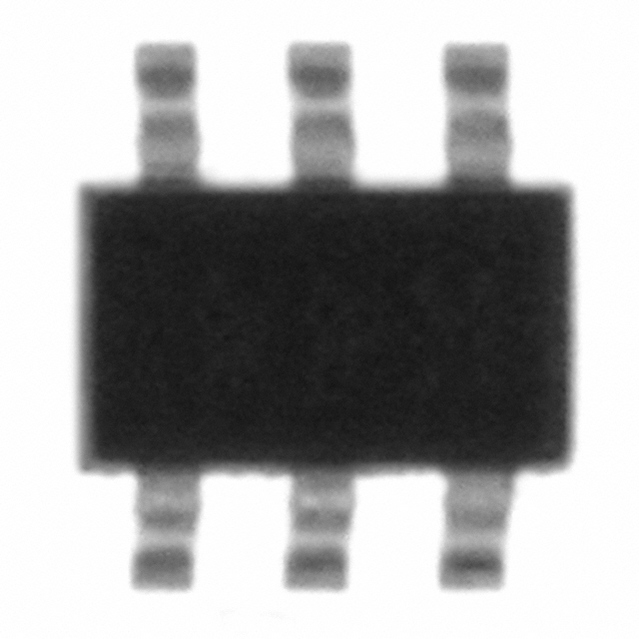

BAS40DW-04 Series 40V 200mA 200mW SMT Schottky Barrier Diode - SOT-363
阵列 2 对串联 肖特基 200mA 表面贴装型 6-TSSOP,SC-88,SOT-363
得捷:
DIODE ARRAY SCHOTTKY 40V SOT363
立创商城:
40V 200mA 1V@40mA
贸泽:
Schottky Diodes & Rectifiers 200mA 40V
艾睿:
Switch from an AC voltage to a DC voltage using a small signal Schottky diode BAS40DW-04-TP rectifier from Micro Commercial Components. Its maximum power dissipation is 200 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a double dual series configuration. Its maximum continuous forward current is 0.2 A. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C.
Chip1Stop:
Diode Small Signal Schottky 40V 0.2A 6-Pin SOT-363 T/R
Verical:
Rectifier Diode Small Signal Schottky 40V 0.2A 5ns 6-Pin SOT-363 T/R
电容 5.00 pF
正向电压 1 V
耗散功率 200 mW
反向恢复时间 5 ns
正向电流 0.2 A
正向电压Max 1V @40mA
正向电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 125℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-6
工作温度 55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAS40DW-04-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BAS40DW-04-7-F 美台 | 功能相似 | BAS40DW-04-TP和BAS40DW-04-7-F的区别 |
BAS40W-04-7-F 美台 | 功能相似 | BAS40DW-04-TP和BAS40W-04-7-F的区别 |
BAS40W-05-7-F 美台 | 功能相似 | BAS40DW-04-TP和BAS40W-05-7-F的区别 |
