VISHAY BYM10-100-E3/96 标准恢复二极管, 单, 100 V, 1 A, 1.1 V, 30 A

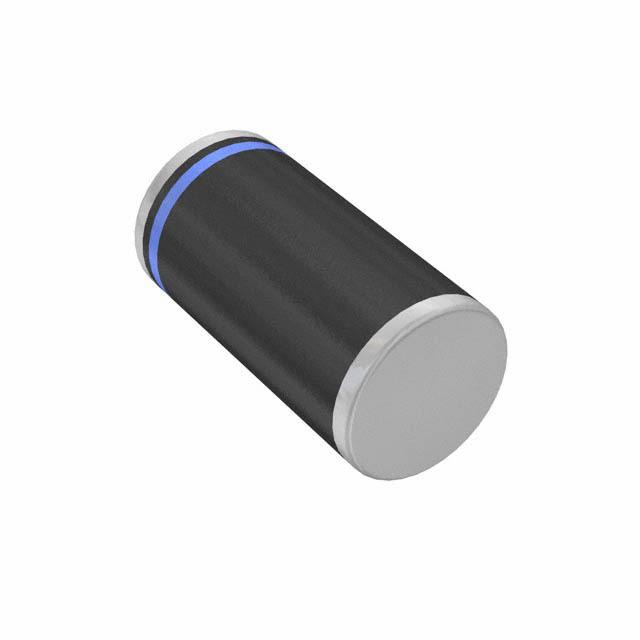

The is a surface-mount Glass-passivated Junction Rectifier with moulded epoxy over glass body and matte tin plated solderable leads. It comes with two bands indicate cathode end - 1st band denotes device type and 2nd band denotes repetitive peak reverse voltage rating. It is suitable for use in general-purpose rectification of power supplies, inverters, converters and freewheeling diodes.
- .
- Superectifier structure for high reliability condition
- .
- Ideal for automated placement
- .
- Low forward voltage drop
- .
- Low leakage current
- .
- High forward surge capability
针脚数 2
正向电压 1.1V @1A
正向电流 1 A
最大正向浪涌电流（Ifsm） 30 A
正向电压Max 1.1 V
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-213AB
长度 5.2 mm
宽度 2.67 mm
高度 2.67 mm
封装 DO-213AB
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Consumer Electronics, Industrial, Communications & Networking, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BYM10-100-E3/96 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
BYM10-100-E3/97 威世 | 类似代替 | BYM10-100-E3/96和BYM10-100-E3/97的区别 |
S1G-13-F 美台 | 功能相似 | BYM10-100-E3/96和S1G-13-F的区别 |
S1G-E3/61T 威世 | 功能相似 | BYM10-100-E3/96和S1G-E3/61T的区别 |
