VISHAY BYM10-800-E3/96 标准功率二极管, 单, 800 V, 1 A, 830 mV, 30 A

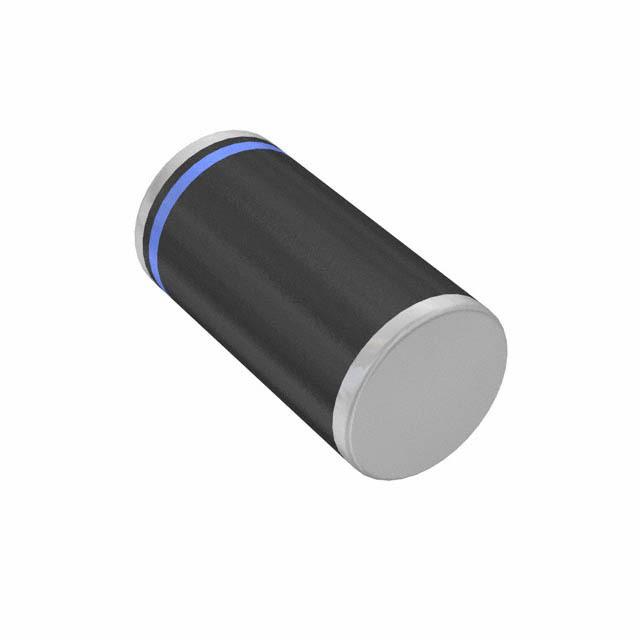

The is a surface-mount Glass-passivated Junction Rectifier with moulded epoxy over glass body and matte tin plated solderable leads. It comes with two bands indicate cathode end - 1st band denotes device type and 2nd band denotes repetitive peak reverse voltage rating. It is suitable for use in general-purpose rectification of power supplies, inverters, converters and freewheeling diodes.
- .
- Superectifier structure for high reliability condition
- .
- Ideal for automated placement
- .
- Low forward voltage drop
- .
- Low leakage current
- .
- High forward surge capability
正向电压 1.2V @1A
正向电流 1 A
最大正向浪涌电流（Ifsm） 30 A
正向电压Max 830 mV
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-213AB
长度 5.2 mm
宽度 2.67 mm
高度 2.67 mm
封装 DO-213AB
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Consumer Electronics, Industrial, Communications & Networking, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BYM10-800-E3/96 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
BYM10-1000-E3/96 威世 | 类似代替 | BYM10-800-E3/96和BYM10-1000-E3/96的区别 |
BYM10-1000-E3/97 威世 | 类似代替 | BYM10-800-E3/96和BYM10-1000-E3/97的区别 |
1N6484-E3/96 威世 | 类似代替 | BYM10-800-E3/96和1N6484-E3/96的区别 |
