BU7244F-E2

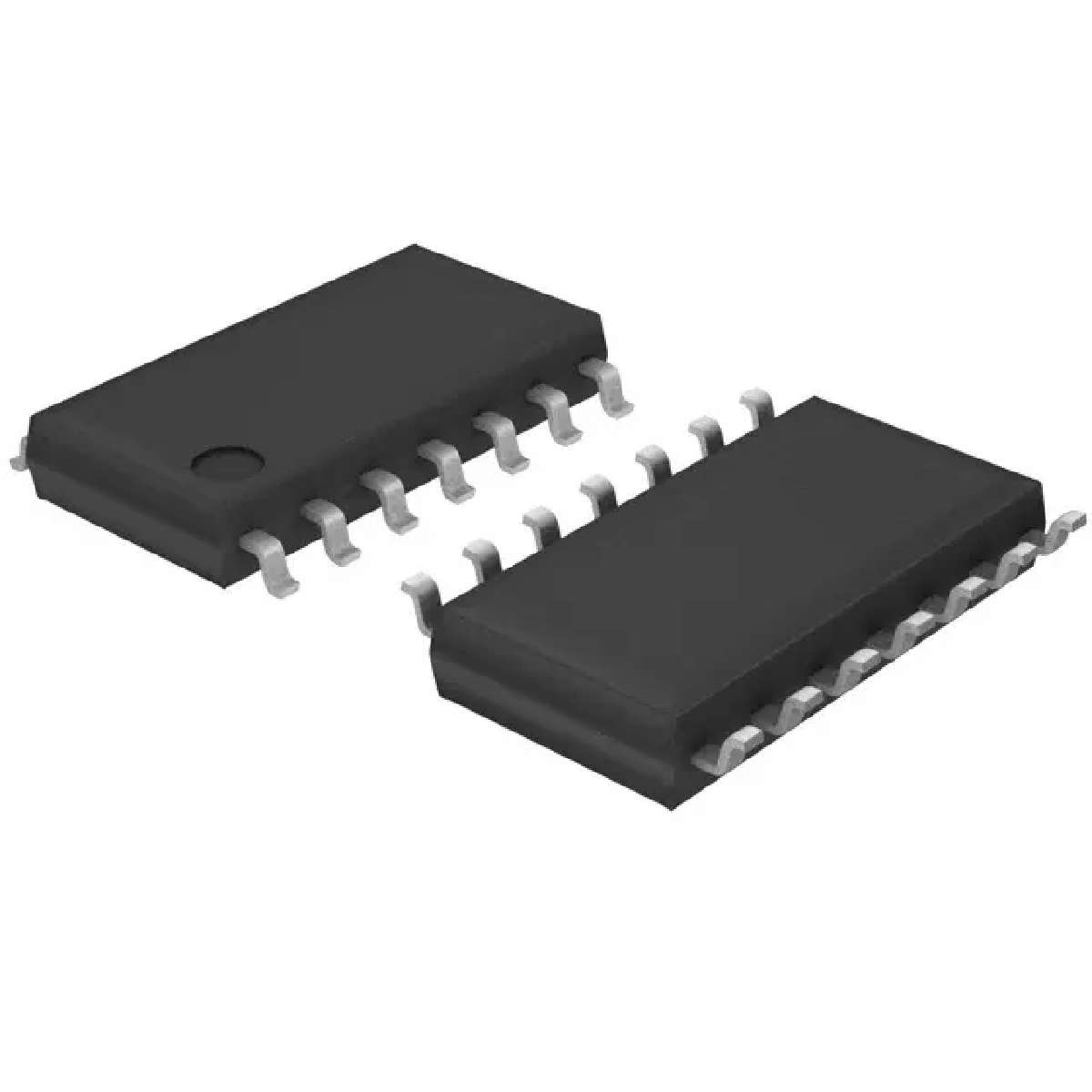

运算放大器, 4个放大器, 900 kHz, 0.4 V/µs, 1.8V 至 5.5V, SOP, 14 引脚

●Description

Low Voltage CMOS Op-Amp integrates one or two or four independent output full swing Op-Amps and phase compensation capacitors on a single chip. Especially, this series is operablewith low voltage, low supply current and low input bias current.

●Features

 1  Operable with low voltage

    +1.8[V] ~ +5.5[V] single supply:

    BU7261/BU7241 family BU7262/BU7242 family

    BU7264/BU7244 family BU7295/BU7275 family

 2  Operable input-Output full swing

 3  High slew rate  BU7261 family, BU7262 family

                           BU7295 family, BU7264 family

 4  Internal phase compensation

 5  Wide temperature range

     -40[℃] ~ +85[℃]

       BU7261G, BU7262 family, BU7264F, BU7295HFV

       BU7241G, BU7242 family, BU7244F, BU7275HFV

     -40[℃] ~ +105[℃]

       BU7261SG, BU7262S family, BU7264SF, BU7295SHFV

       BU7241SG, BU7242S family, BU7244SF, BU7275SHFV

6  High large signal voltage gain

7  Low supply current

    BU7241 family, BU7242 family

    BU7275 family, BU7244 family

8  Low input bias current 1[pA]Typ.

9  Internal ESD protection

    Human body model HBM±4000[V]Typ.
