VISHAY BYM12-200-E3/96 快速/超快二极管, 单, 200 V, 1 A, 1 V, 50 ns, 30 A

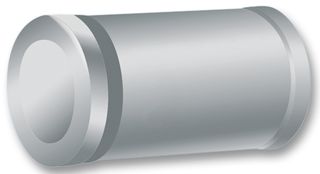

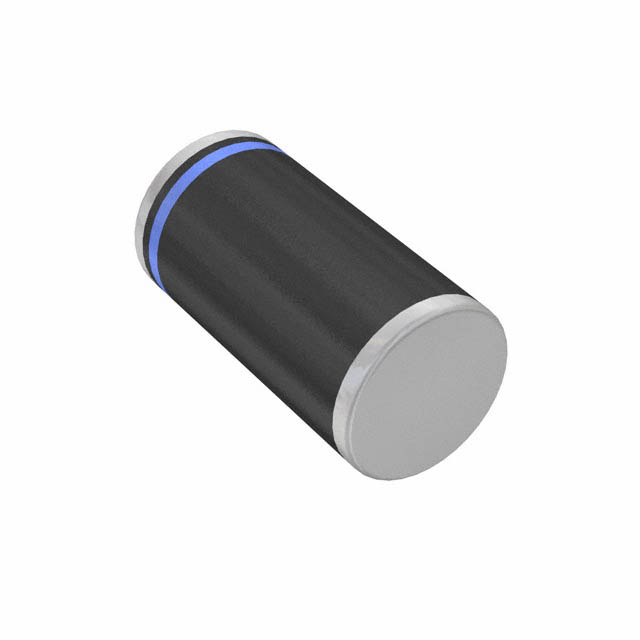

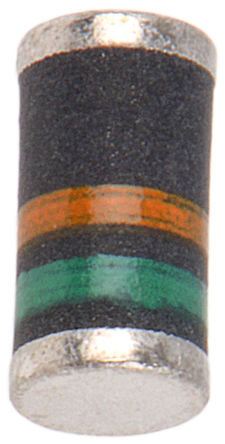

The is a surface-mount glass-passivated Ultra-fast Rectifier with moulded epoxy over glass body case and solderable matte tin-plated terminals. It comes with two bands indicate cathode end - 1st band denotes device type and 2nd band denotes repetitive peak reverse voltage rating. It is suitable for use in high frequency rectification and free-wheeling application in switching mode converters and inverters.
正向电压 1V @1A
反向恢复时间 50 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1 V
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-213AB
长度 5.2 mm
宽度 2.67 mm
高度 2.67 mm
封装 DO-213AB
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Consumer Electronics, Commercial, Communications & Networking, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BYM12-200-E3/96 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
EGL41D-E3/96 威世 | 完全替代 | BYM12-200-E3/96和EGL41D-E3/96的区别 |
BYM12-200-E3/97 威世 | 完全替代 | BYM12-200-E3/96和BYM12-200-E3/97的区别 |
BYM12-200HE3/96 威世 | 类似代替 | BYM12-200-E3/96和BYM12-200HE3/96的区别 |
