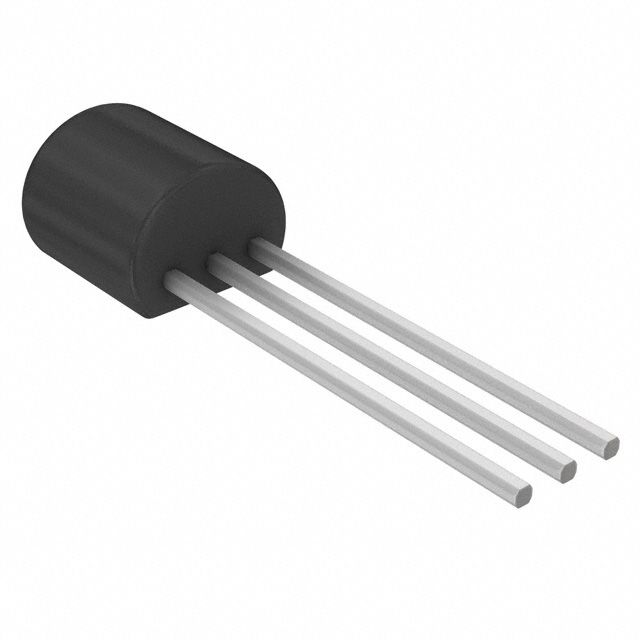

BC557BG概述

PNP 晶体管,ON Semiconductor这些 ON Semiconductor 双极晶体管可放大模拟或数字信号。 它们还可切换直流或用作振荡器。 ### 标准Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.### 双极性晶体管,On SemiconductorON Semiconductor 的各种双极晶体管,包括以下类别:小信号晶体管 通用晶体管 双 NPN 和 PNP 晶体管 功率晶体管 高电压晶体管 射频双极晶体管 低噪声,双匹配和复杂的双极晶体管

Thanks to , your circuit can handle high levels of voltage using the PNP general purpose bipolar junction transistor. This bipolar junction transistor"s maximum emitter base voltage is 5 V. Its maximum power dissipation is 625 mW. This product comes packaged in bulk, so the parts will be stored loosely. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C.

BC557BG中文资料参数规格
技术参数

频率 320 MHz

额定电压DC -45.0 V

额定电流 -100 mA

极性 PNP

耗散功率 0.625 W

击穿电压集电极-发射极 45 V

集电极最大允许电流 0.1A

最小电流放大倍数hFE 180 @2mA, 5V

额定功率Max 625 mW

工作温度Max 150 ℃

工作温度Min -55 ℃

耗散功率Max 625 mW

封装参数

安装方式 Through Hole

引脚数 3

封装 TO-226-3

外形尺寸

封装 TO-226-3

物理参数

材质 Silicon

工作温度 -55℃ ~ 150℃ TJ

其他

产品生命周期 Active

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

BC557BG引脚图与封装图
BC557BG引脚图
BC557BG封装图
BC557BG封装焊盘图
在线购买BC557BG
型号: BC557BG
描述:PNP 晶体管,ON Semiconductor 这些 ON Semiconductor 双极晶体管可放大模拟或数字信号。 它们还可切换直流或用作振荡器。 ### 标准 Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard. ### 双极性晶体管,On Semiconductor ON Semiconductor 的各种双极晶体管,包括以下类别: 小信号晶体管 通用晶体管 双 NPN 和 PNP 晶体管 功率晶体管 高电压晶体管 射频双极晶体管 低噪声,双匹配和复杂的双极晶体管
替代型号BC557BG
型号/品牌 代替类型 替代型号对比

BC557BG

ON Semiconductor 安森美

当前型号

当前型号

BC557BZL1

安森美

完全替代

BC557BG和BC557BZL1的区别

BC557BRL1G

安森美

类似代替

BC557BG和BC557BRL1G的区别

BC557BZL1G

安森美

类似代替

BC557BG和BC557BZL1G的区别
