B82720S2202N040概述

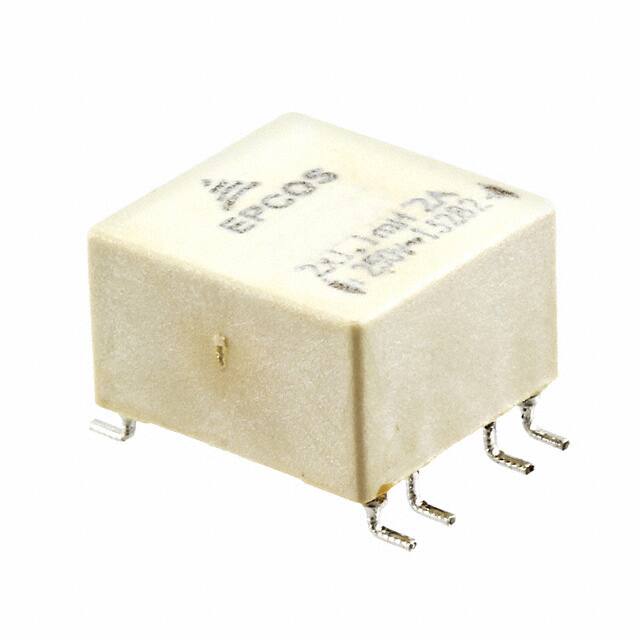

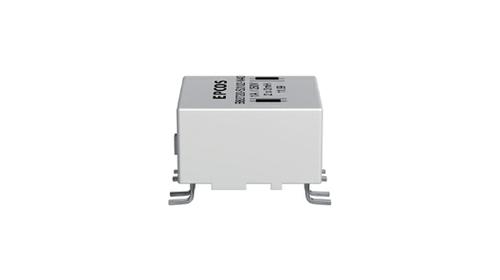

EPCOS  B82720S2202N040  扼流圈, 环形磁芯, 双1.1mH, 2A

The is a 2A current-compensated SMD ring core double Power Line Choke suitable for reflow soldering. It has ferrite core with epoxy coating, LCP case, silicone potting and sector winding, hot dipped Ni and Sn layer composition CuSn6 base terminal.

.
Approximate 0.7% stray inductance for differential-mode interference suppression
.
Design complies with EN 60938-2 and UL 1283
.
UL94V-0 Flammability rating

Ferrites are sensitive to direct impact. This can cause the core material to flake or lead to breakage of the core.

B82720S2202N040中文资料参数规格
技术参数

额定电流 2 A

电感 1.1 mH

电阻 65.0 mΩ

测试频率 10 kHz

工作温度Max 125 ℃

工作温度Min -40 ℃

额定电压 250 VAC

封装参数

安装方式 Surface Mount

引脚数 4

封装 SMD

外形尺寸

长度 13.3 mm

宽度 16.6 mm

高度 10.7 mm

封装 SMD

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 工业, Lighting, Industrial, Power Management, 电源管理, 照明

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买B82720S2202N040
型号: B82720S2202N040
制造商: Epcos 爱普科斯
描述:EPCOS  B82720S2202N040  扼流圈, 环形磁芯, 双1.1mH, 2A
