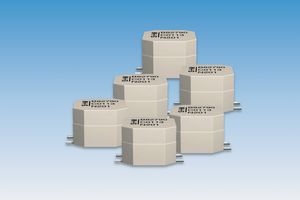

EPCOS B82790C0113N201 电感, 11uH, 500mA, 30%, 整卷
The is a 500mA data and signal line ring core Common Mode Choke suitable for reflow soldering. It has ferrite core, PPS case and bifilar winding, electro-plated Ni and Sn layer composition CuSn6 base terminals.
- .
- AEC-Q200 qualified
- .
- UL94V-0 Flammability rating
Ferrites are sensitive to direct impact. This can cause the core material to flake or lead to breakage of the core.
额定电压DC 80.0 V
额定电流 500 mA
易燃性等级 UL 94 V-0
电感 11 µH
电感公差 ±30 %
测试频率 100 kHz
额定电流DC 500 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 42 VAC
电阻DC Max 0.08 Ω
安装方式 Surface Mount
引脚数 4
封装 7.1mm x 6mm x 4.9mm
长度 9 mm
宽度 6 mm
高度 5.2 mm
封装 7.1mm x 6mm x 4.9mm
产品生命周期 Not For New Designs
包装方式 Tape & Reel TR
制造应用 Industrial, Signal Processing, 工业, 车用, Automotive, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
