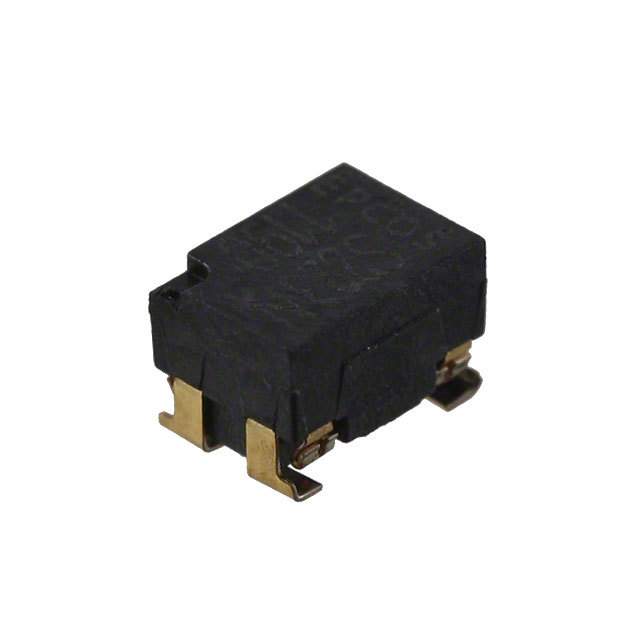

EPCOS B82799S513N1 电感, 1812 51UH
The is a 100mA data and signal line ring core Common Mode Choke suitable for reflow soldering and also for conductive adhesion due gold-plated terminals. It has ferrite core, LCP case and sector winding, silicone potting and electro-plated Ni/Ag/Au layer composition CuSn6 base terminals.
- .
- 150°C Version
- .
- AEC-Q200 qualified
Ferrites are sensitive to direct impact. This can cause the core material to flake or lead to breakage of the core.
额定电压DC 80 V
额定电压AC 42 V
额定电流 200 mA
易燃性等级 UL 94 V-0
电感 51 µH
电阻 300 mΩ
测试频率 100 kHz
额定电流Max 200 mA
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 42 VAC
安装方式 Surface Mount
引脚数 4
封装 1812
高度 3.2 mm
封装 1812
工作温度 -55℃ ~ 150℃
产品生命周期 Not Recommended for New Design
包装方式 Tape & Reel TR
制造应用 信号处理, Signal Processing, Automotive, 车用, Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
