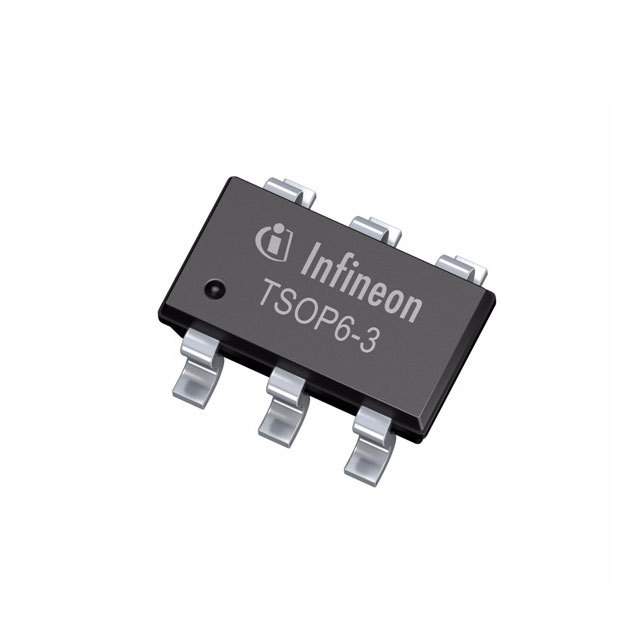

双路场效应管, MOSFET, N和P, 2.3 A, 30 V, 0.044 ohm, 10 V, 1.6 V
Summary of Features:
得捷:
MOSFET N/P-CH 30V 2.3A/2A 6TSOP
欧时:
Infineon MOSFET BSL308CH6327XTSA1
立创商城:
1个N沟道和1个P沟道 30V 2.3A 2A
e络盟:
双路场效应管, MOSFET, 互补N与P沟道, 30 V, 2.3 A, 0.044 ohm, TSOP, 表面安装
艾睿:
Increase the current or voltage in your circuit with this BSL308CH6327XTSA1 power MOSFET from Infineon Technologies. Its maximum power dissipation is 500 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This N|P channel MOSFET transistor operates in enhancement mode. This device utilizes optimos p3|optimos 2 technology. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C.
安富利:
Trans MOSFET N-CH/P-CH 30V/30V 2.3A/2A 6-Pin TSOP T/R
TME:
Transistor: N/P-MOSFET; unipolar; 30/-30V; 2.3/-2A; 0.5W
Verical:
Trans MOSFET N/P-CH 30V 2.3A/2A Automotive 6-Pin TSOP T/R
Win Source:
MOSFET N/P-CH 30V 2.3A/2A 6TSOP
额定功率 0.5 W
针脚数 6
漏源极电阻 0.044 Ω
极性 N+P
耗散功率 0.5 W
阈值电压 1.6 V
漏源极电压Vds 30 V
连续漏极电流Ids 2.3A/2A
输入电容Ciss 275pF @15VVds
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 6
封装 TSOP-6-6
封装 TSOP-6-6
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Onboard charger
RoHS标准 RoHS Compliant
含铅标准 Lead Free
