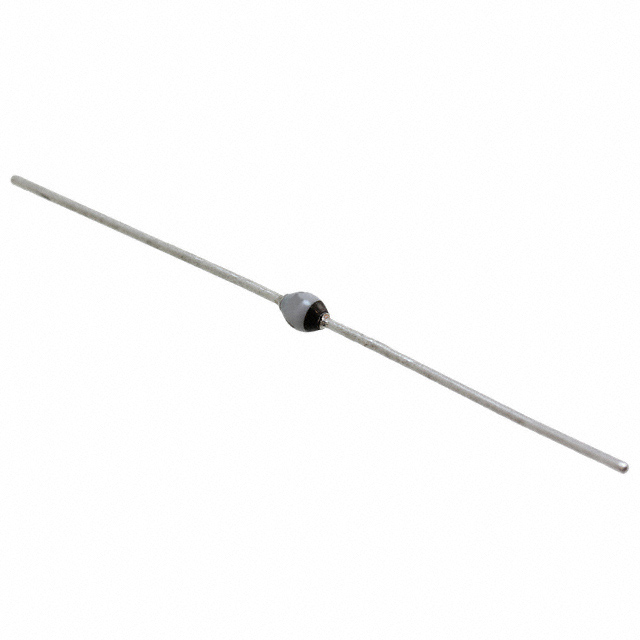

VISHAY BYW56-TR.. 电源整流二极管, 标准恢复, 2A
The is a standard avalanche Sinterglass Diode with axial-leaded terminal. Solderable terminals as per MIL-STD-750, method 2026 standard. Color band denotes cathode end polarity. It is suitable for general purpose and rectification applications.
额定电流 2.00 A
正向电压 1 V
反向恢复时间 4 µs
正向电流 2 A
最大正向浪涌电流(Ifsm) 50 A
正向电压Max 1 V
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2

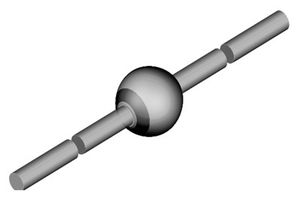

封装 SOD-57
长度 4 mm
封装 SOD-57
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Industrial, Aerospace, Defence, Military
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BYW56-TR Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
BYW56-TAP 威世 | 类似代替 | BYW56-TR和BYW56-TAP的区别 |
