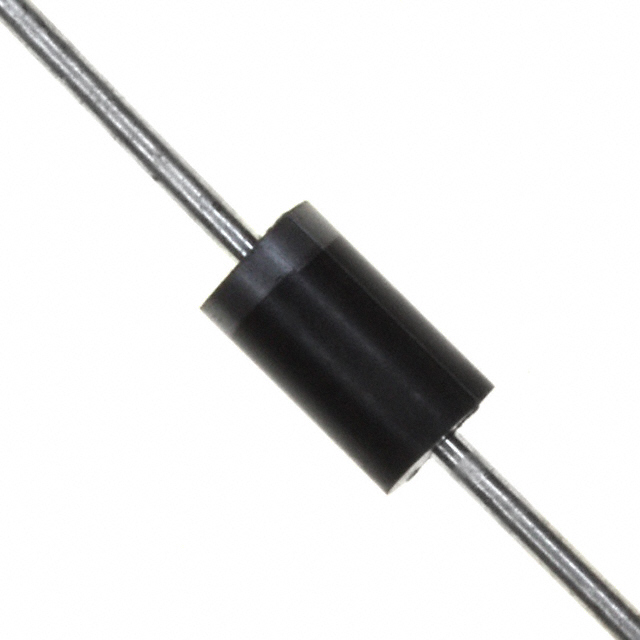

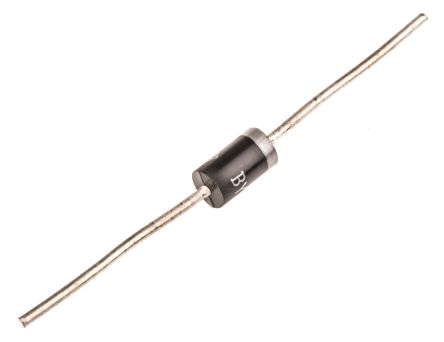

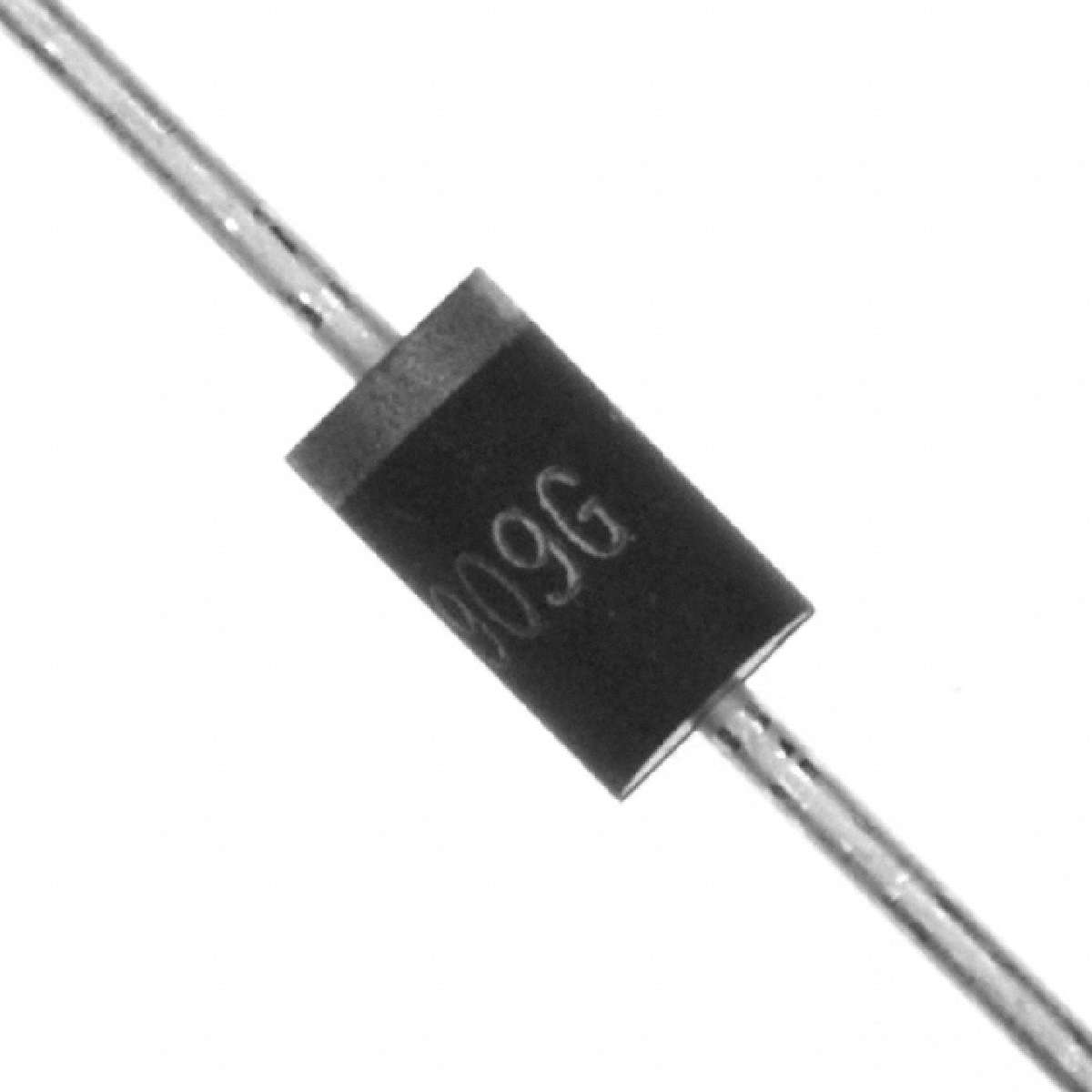

VISHAY BY255GP-E3/54 标准功率二极管, 单, 1.3 kV, 3 A, 1.1 V, 3 µs, 100 A
The is a glass passivated junction Plastic Rectifier with matte tin-plated leads terminals and UL94V-0 flame rated moulded epoxy over glass body. The plastic rectifier features high forward surge capability and Superectifier structure for high reliability application. Colour band denotes cathode end polarity.
正向电压 1.1V @3A
反向恢复时间 3 µs
正向电流 3 A
最大正向浪涌电流(Ifsm) 100 A
正向电压Max 1.1 V
正向电流Max 3 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-201AD
长度 9.5 mm
宽度 5.3 mm
高度 5.3 mm
封装 DO-201AD
产品生命周期 Discontinued at Digi-Key
包装方式 Each
制造应用 Power Management, Consumer Electronics, 消费电子产品, 电源管理, 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BY255GP-E3/54 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
BY255GPHE3/54 威世 | 类似代替 | BY255GP-E3/54和BY255GPHE3/54的区别 |
